LLF0263A

Downloading Materials
  • Waterproof IP66
  • Noise Resistance
  • Heat Resistant
  • Vibration Resistance 2G

A sleek and compact lightweight body,
an LED streetlight that seamlessly blends
with urban landscapes.

The fixture achieves a compact and lightweight body while incorporating a built-in power supply.
For the waterproof structure of the light source, we adopted hot melt technology, proven in automotive lamps.
With a high-seal design (IP66), there is no concern about the intrusion of insects or other elements.

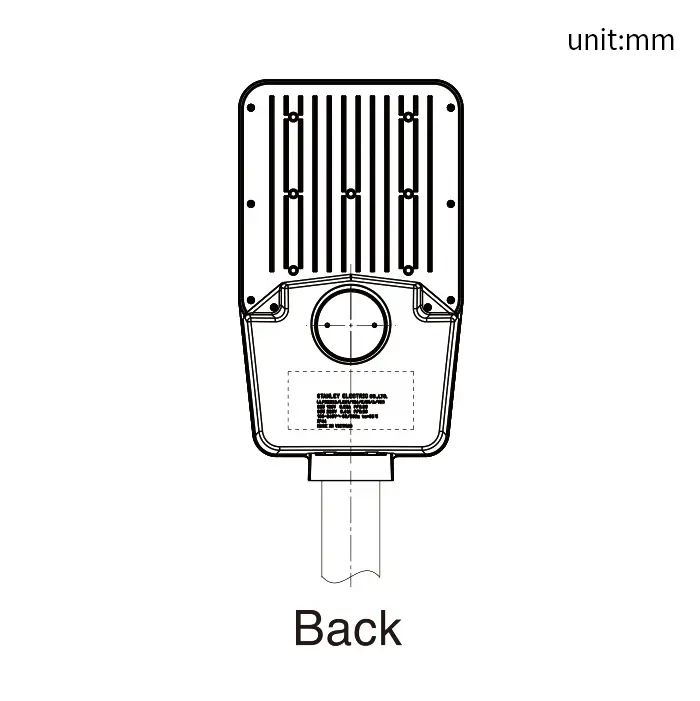

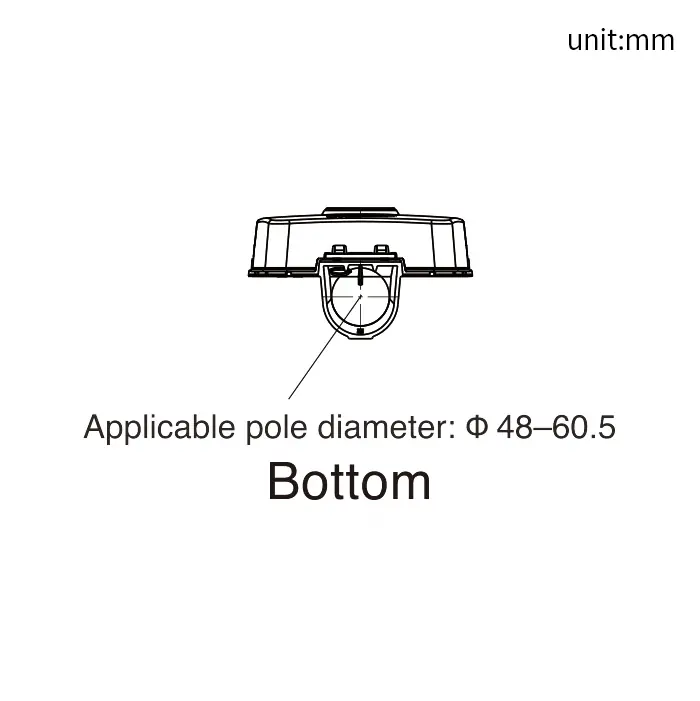

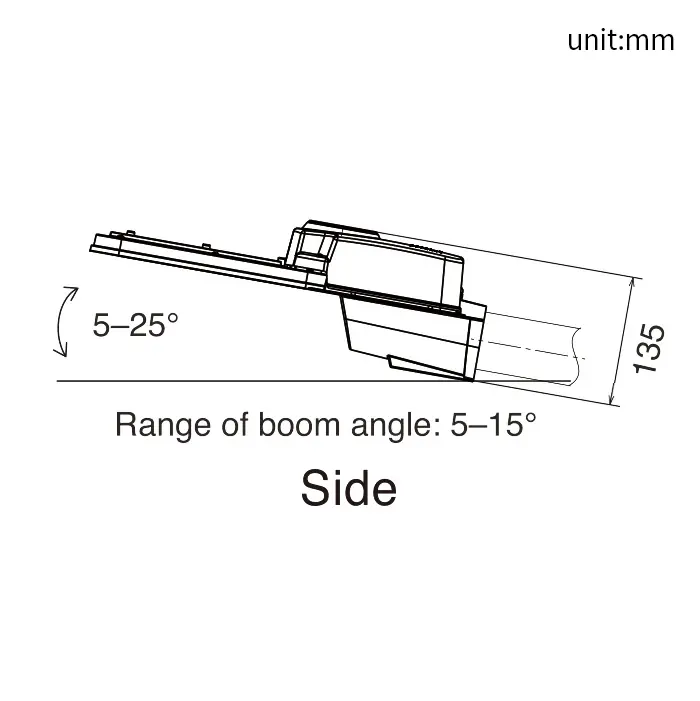

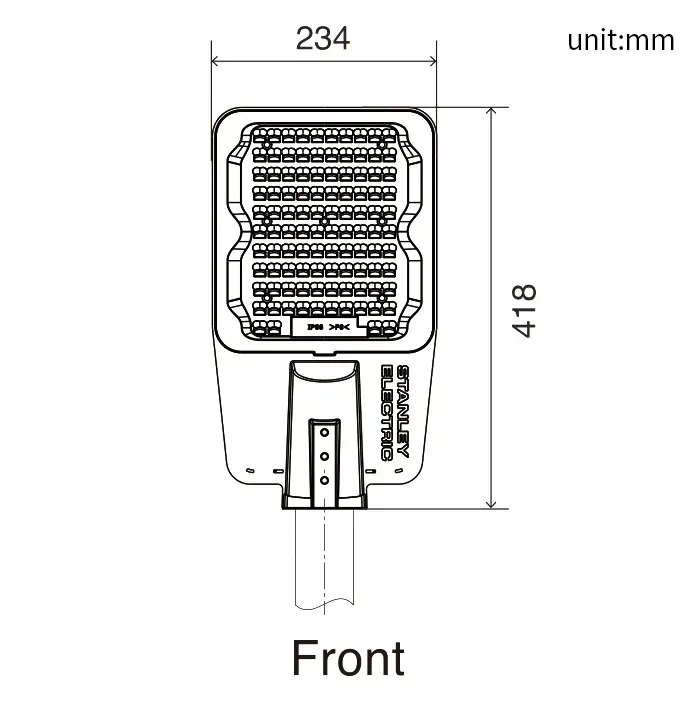

Outline dimensions

Features

  • Design that Suits Urban Areas

    Implemented optimal control of light distribution with a slim body that matches a variety of scenes.

  • Lightweight Design

    The unprecedented lightweight design reduces the load on the pole (40% lighter compared to our previous models).

  • High Tolerance to Heat

    Tolerates ambient temperature up to 55℃.

  • Wide Range of Input Voltage

    With an allowable input voltage range of AC90-305V, it can operate even in areas with unstable voltage.
    *The input Supports voltages in the range of the 42W type is AC 160~305V.
    *Performance in the voltage range outside the rated voltage is not guaranteed.

  • NEMA Compatible as an Option

    Since NEMA compatibility is available as an option, remote control is possible.

  • Achieving High Efficiency

    The 90W type achieves an average road surface brightness of 1.44 cd/㎡, meeting the EN 13201-2 lighting standard ME4a（L≧0.75cd/ ㎡）.

LEDSROAD

LED Road Lighting LLF0263A

Features

Part No. LLF0263A/LEN1/80/E/IN/A/VN1 Power Consumption(W) 70W
Rated Luminous Flux 9,200 lm Intrinsic energy consumption efficiency 131 lm/W
Material Body: Aluminum die-casting
Lens: Polycarbonate		 Color Temperature 4000K
Water and Dust Resistance Cover lens IP66、Back cover IP44 Life of LED’s Light Source 60,000 h (lumen maintenance factor 70%)
Shock Resistance IK08 Vibration Resistance 2G
Ambient Temperature -10℃～55℃ Wind Resistance 60m/s
Rated Voltage AC100~240V Lightning Surge Protection Pressure Resistance 10kV(Common mode)
Type of Road general Weight 3kg
Part No. LLF0263A/LEN1/104/E/IN/A/VN1 Power Consumption(W) 90W
Rated Luminous Flux 12,100 lm Intrinsic energy consumption efficiency 134 lm/W
Material Body: Aluminum die-casting
Lens: Polycarbonate		 Color Temperature 4000K
Water and Dust Resistance Cover lens IP66、Back cover IP44 Life of LED’s Light Source 60,000 h (lumen maintenance factor 70%)
Shock Resistance IK08 Vibration Resistance 2G
Ambient Temperature -10℃～55℃ Wind Resistance 60m/s
Rated Voltage AC100~240V Lightning Surge Protection Pressure Resistance 10kV(Common mode)
Type of Road general Weight 3kg

You can calculate the illuminance and number of fixtures required here.
