• Road Lighting
  • LEDSROAD
  • LED Road Lighting

LLF0139A

Downloading Materials
  • Waterproof IP66
  • Heat Resistant
  • UV Resistant
  • Vibration Resistance 2G

LED road lighting that maintains stable and long-term operation in all kinds of environment

The parts other than the light source are also airtight (IP66), so there is no need to worry about insects or other intruders. Three output types are available in the line-up.
Tool-less opening and closing of the cover simplifies installation.

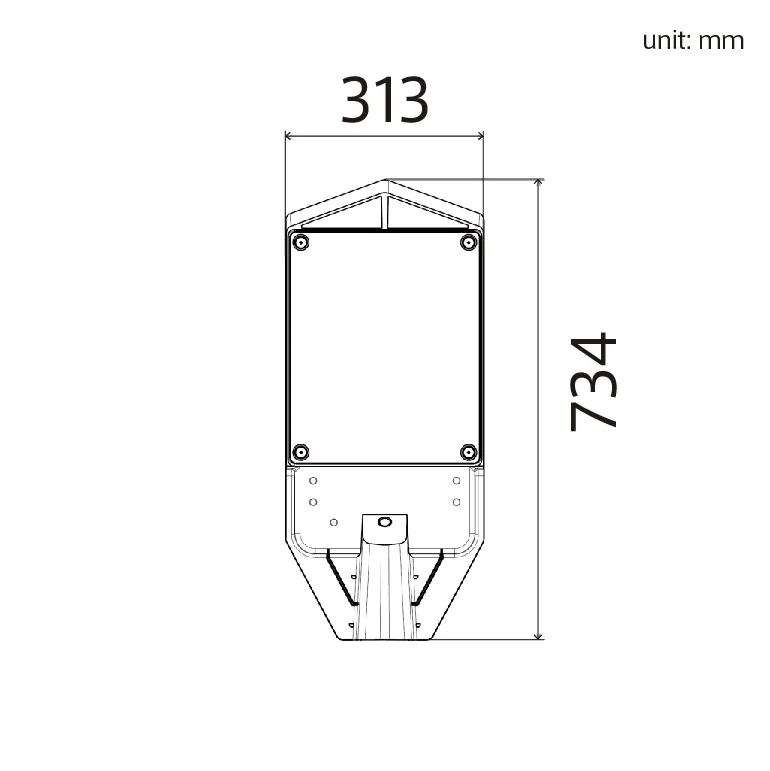

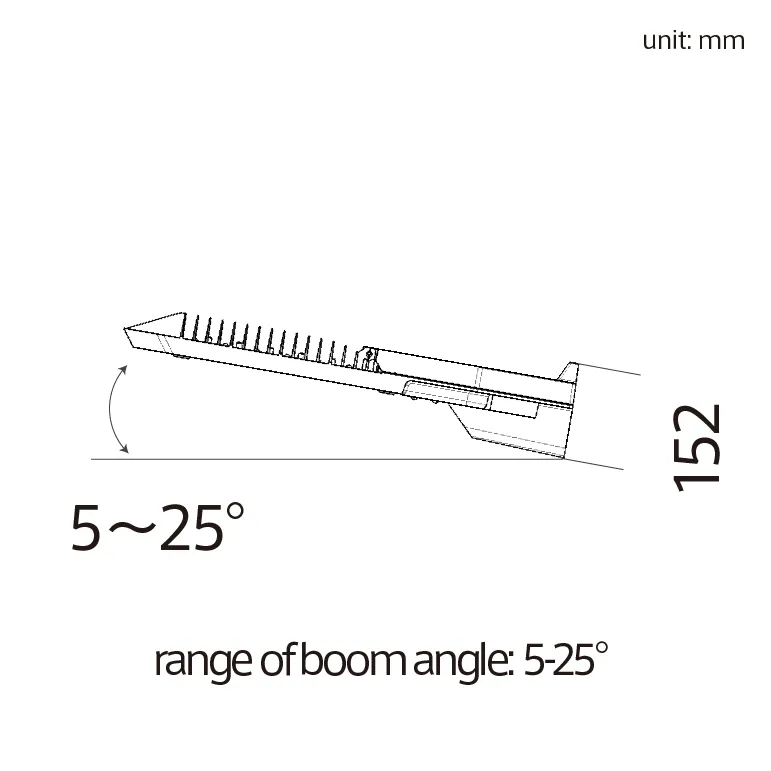

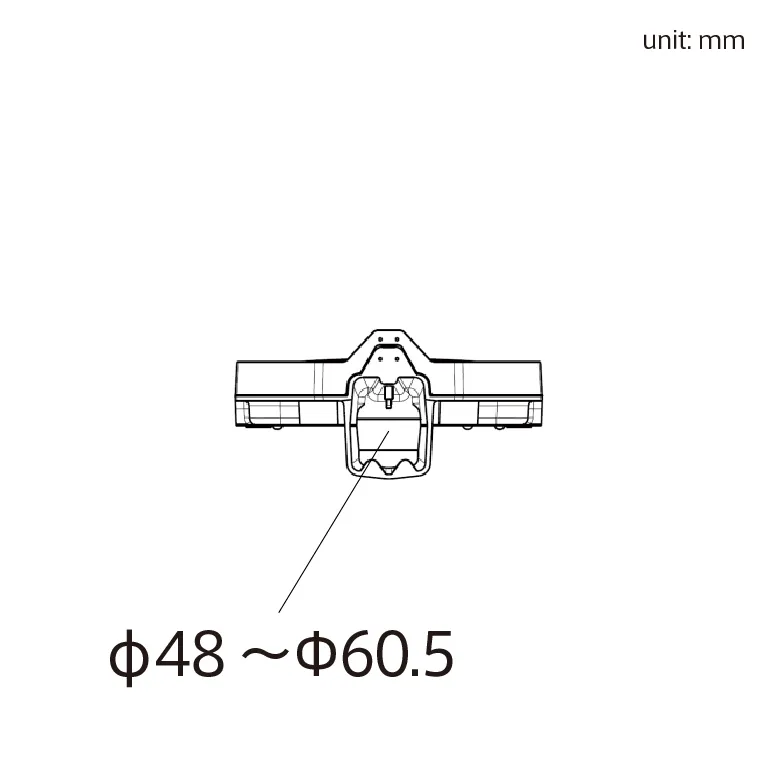

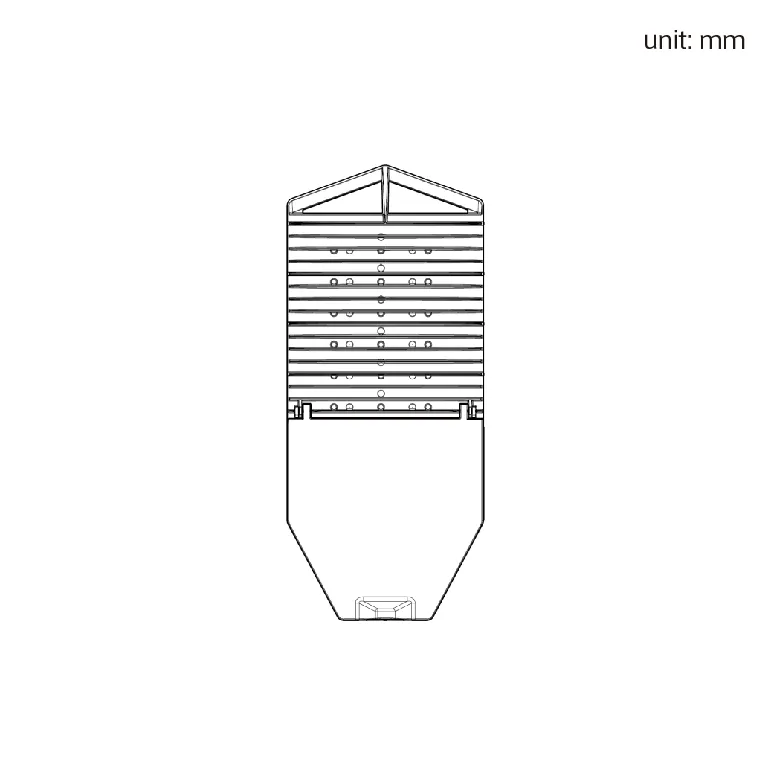

Outline dimensions

Features

  • Design that suits urban areas

    Implemented optimal control of light distribution with a slim body that matches a variety of scenes.

  • High tolerance to UV

    Tempered glass is used for the outer lens of the light-emitting part, and the optical lenses are made of acryl.

  • High tolerance to heat

    Ambient temperature is +50℃ at the highest.

  • Wide range of input voltage

    With an allowable input voltage range of AC90-305V, it can operate even in areas with unstable voltage.
    *Performance in the voltage range outside the rated voltage is not guaranteed.

  • Maintenance & upgrading

    In addition to the power source part, we unitized the LED part so it can be replaced or upgraded as a unit.

LEDSROAD

LED Road Lighting LLF0139A

Features

Part No. LLF0139A/LEN1/120/E/IN/A Power Consumption (at 220V) 121W
Rated Luminous
Flux		 14,000 lm Intrinsic energy
consumption
efficiency:		 116 lm/W
Class of the
Lighting		 ME3~ME6 Material Body: aluminum die-cast, Outer Cover: tempered glass
Color
Temperature		 4000K Water and Dust
Resistance		 IP66
Life of Light Source 60,000h (lumen maintenance factor70%) Shock Resistance IK08
Shock Resistance 2G Ambient
Temperature		 -20～50℃
Wind Resistance 60m/s Input Voltage rated voltage　AC100~240V(AC90~305V)
Lightning Surge
Protection
Pressure
Resistance		 10kV(Common mode) Type of Road general
Part No. LLF0139A/LEN1/144/E/IN/A Power Consumption (at 220V) 140W
Rated Luminous
Flux		 16,700 lm Intrinsic energy
consumption
efficiency:		 119 lm/W
Class of the
Lighting		 ME3~ME6 Material Body: aluminum die-cast, Outer Cover: tempered glass
Color
Temperature		 4000K Water and Dust
Resistance		 IP66
Life of Light Source 60,000h (lumen maintenance factor70%) Shock Resistance IK08
Shock Resistance 2G Ambient
Temperature		 -20～50℃
Wind Resistance 60m/s Input Voltage rated voltage　AC100~240V(AC90~305V)
Lightning Surge
Protection
Pressure
Resistance		 10kV(Common mode) Type of Road general
Part No. LLF0139A/LEN1/168/E/IN/A Power Consumption (at 220V) 167W
Rated Luminous
Flux		 19,700 lm Intrinsic energy
consumption
efficiency:		 118 lm/W
Class of the
Lighting		 ME3~ME6 Material Body: aluminum die-cast, Outer Cover: tempered glass
Color
Temperature		 4000K Water and Dust
Resistance		 IP66
Life of Light Source 60,000h (lumen maintenance factor70%) Shock Resistance IK08
Shock Resistance 2G Ambient
Temperature		 -20～50℃
Wind Resistance 60m/s Input Voltage rated voltage　AC100~240V(AC90~305V)
Lightning Surge
Protection
Pressure
Resistance		 10kV(Common mode) Type of Road general

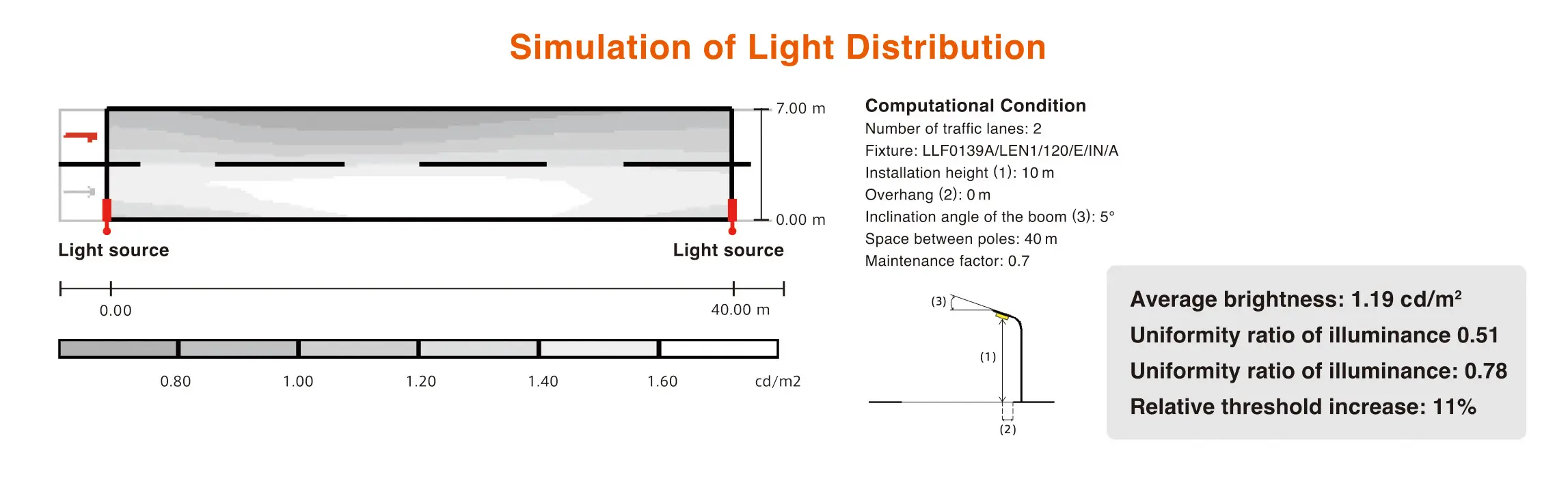

You can calculate the illuminance and number of fixtures required here.

Start the illuminance calculation

Downloading Materials

Disclaimer

  • Stanley Electric Co., Ltd. shall not be liable for any disadvantage, damage, liability for any cause of action, or any other damage or loss arising out of the use of the downloaded data, or inability or inability to use the downloaded data.
  • The Data is provided to the User on an “AS IS” basis, and Stanley Electric Co.
  • This data is provided “as is” without warranty of any kind, either express or implied.
    Reproduction or duplication of the Data, in whole or in part, is strictly prohibited.
  • Stanley Electric Co. Ltd. reserves the right to change the data without notice.
  • Only representative models are shown in the product diagrams. For product diagrams of requested models, please contact us via the contact page.
