• Landscape Lighting
  • LEDSFOCUS PRO

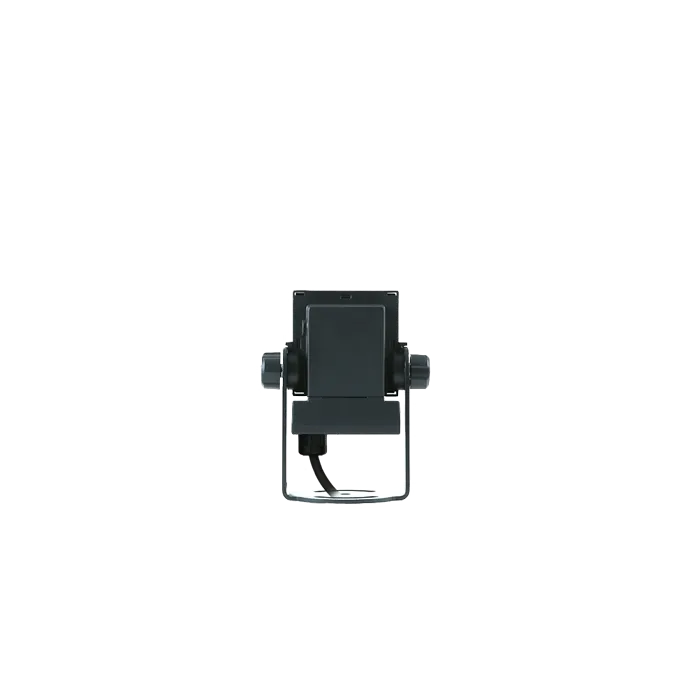

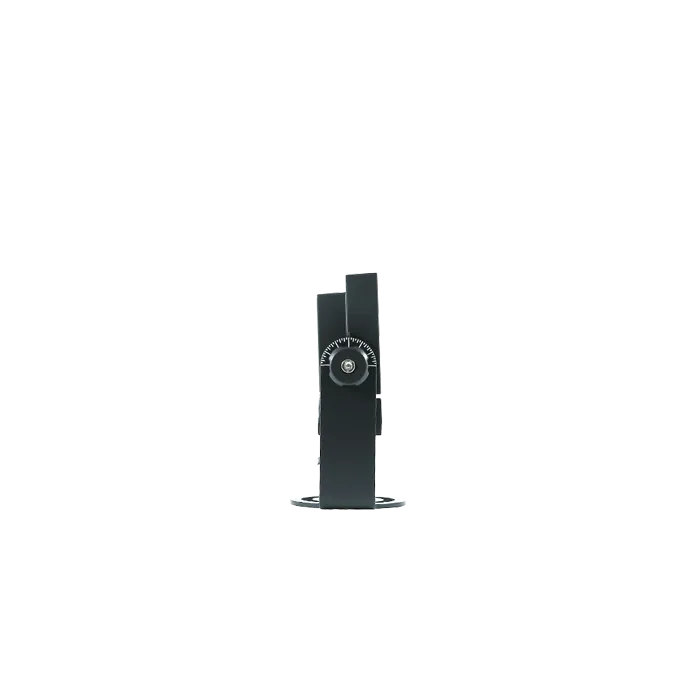

  • LED floodlight with ultra-narrow light distribution

LLF0113A

  • Built-in Power Supply
  • ON/OFF Type
Downloading Materials
  • Vibration Resistance 1G
  • Waterproof IP66
  • Noise Resistance
  • Heat Resistant
  • UV Resistant
  • Heavy Salt Resistance

Wide range of variations to meet every need

Maximizing the potential of LED lighting, we have a chieved an ultra-narrow light distribution which can be used invarious light-up shows. This spotlight can deliver light to where it could not reach before. Our unique optical system shows beautiful projections with control of light distribution angles by 1° and provides a wide variety of colors, to create beautiful illuminations that meet your requests. Possessing high level of resistance to water and dust, the lighting fixture can be used in any kind of environment.

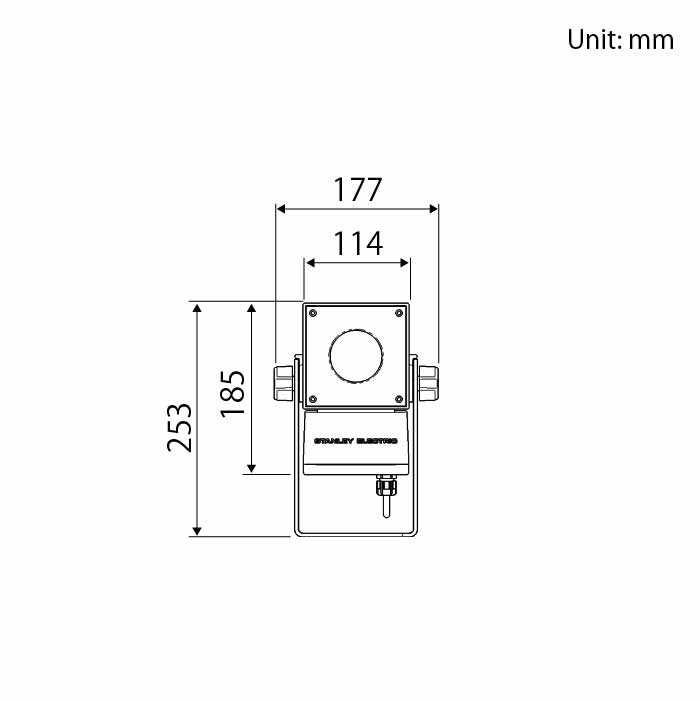

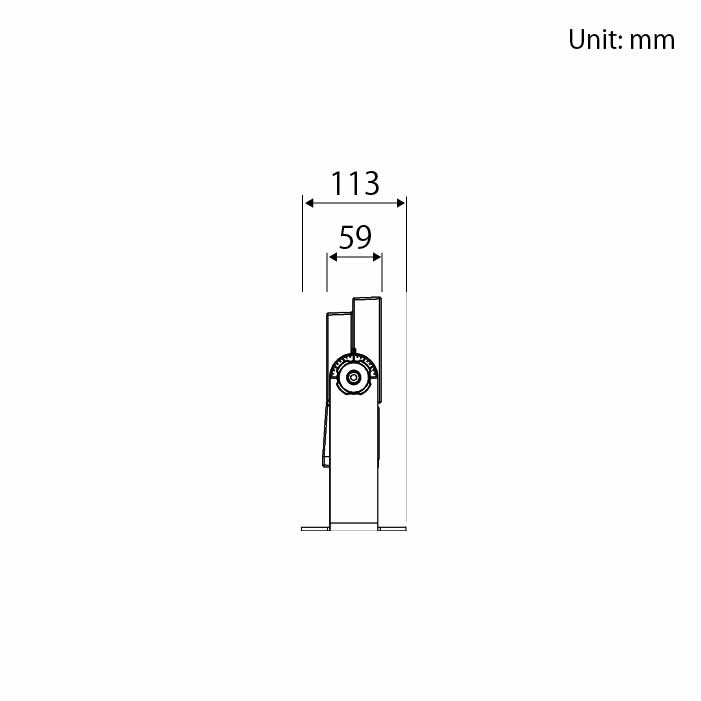

Outline dimensions

Features

  • Ultra-narrow light distribution

    1/2 beam angle, ultra-narrow light distribution with a minimum of 1.5 ° enables bright illumination at distant objects.

  • Light distribution control

    Light distribution can be fine-tuned by 1 ° , from 1.5 to 10 °, accurately casting light on objects. In addition,a high output medium angle light distribution of 10 to 30 ° is available for various applications.

  • Beautiful light projection

    Our unique LED / lens design technology can achieve beautiful and uniform light projection.

  • Heavy duty

    Waterproof and dustproof to provide maximum performance even in harsh environments.

  • Wide variety of customization

    Light distribution, light color, size, body color, and optional parts can be freely customized, making this product suitable for any occasion.

Adoption Example

LLF0113A ON/OFF type

List of products by specifications

Narrow-angle type

LLF0113A Product name / SWWD007 Control Name / / Light Source
Code/
Color Rendering / Light
Distribution Angle / S a / BK b / S c / C d / CE e / 1 f
  • The Part No. in the table below only indicates the Light Source Code, Color Rendering and light distribution angle.
  • a: Installed type [S] = Standard installation
  • b: Body color [BK] = Charcoal grey
  • c: Control [S] = ON/OFF Control
  • d: Painting specification [C] = Heavy-duty salt resistance
  • e: Standard [CE] = CE/PSE
    Standard [TS] = TIS
    Standard[UL]=UL/cUL
    ※Medium-angle type 2200K conforms only to PSE.
  • f: Ver. [1] = Version 1

1/2 Beam angle

Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. ー ー 50/T/XN ー ー ー ー ー
Center luminous intensity (cd) ー ー 199,000 ー ー ー ー ー
Rated Luminous Flux(lm) ー ー 157 ー ー ー ー ー
Power Consumption (W) ー ー 6.60 ー ー ー ー ー
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.14 ー ー 7,800 ー ー ー ー ー
10 0.28 ー ー 2,000 ー ー ー ー ー
30 0.84 ー ー 220 ー ー ー ー ー
50 1.4 ー ー 78 ー ー ー ー ー
100 2.8 ー ー 20 ー ー ー ー ー
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/VN 57/X/VN 50/X/VN 40/X/VN 30/X/VN 27/X/VN 22/X/VN YE/N/VN
Center luminous intensity (cd) 110,000 110,000 110,000 110,000 99,300 78,600 68,700 79,300
Rated Luminous Flux(lm) 158 158 158 158 142 121 106 129
Power Consumption (W) 7.10 7.10 7.10 7.10 7.10 7.10 7.10 7.10
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.19 4,400 4,400 4,400 4,400 4,000 3,100 2,700 3,200
10 0.38 1,100 1,100 1,100 1,100 990 790 690 790
30 1.2 120 120 120 120 110 87 76 88
50 1.9 44 44 44 44 40 31 27 32
100 3.8 11 11 11 11 9.9 7.9 6.9 7.9
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/03 57/X/03 50/X/03 40/X/03 30/X/03 27/X/03 22/X/03 YE/N/03
Center luminous intensity (cd) 74,200 74,200 74,200 74,200 66,800 52,800 46,200 53,300
Rated Luminous Flux(lm) 158 158 158 158 142 121 106 129
Power Consumption (W) 7.10 7.10 7.10 7.10 7.10 7.10 7.10 7.10
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.23 3,000 3,000 3,000 3,000 2,700 2,100 1,800 2,100
10 0.45 740 740 740 740 670 530 460 530
30 1.4 82 82 82 82 74 59 51 59
50 2.3 30 30 30 30 27 21 18 21
100 4.5 7.4 7.4 7.4 7.4 6.7 5.3 4.6 5.3
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/04 57/X/04 50/X/04 40/X/04 30/X/04 27/X/04 22/X/04 YE/N/04
Center luminous intensity (cd) 37,800 37,800 37,800 37,800 34,000 26,900 23,500 27,100
Rated Luminous Flux(lm) 158 158 158 158 142 121 106 129
Power Consumption (W) 7.10 7.10 7.10 7.10 7.10 7.10 7.10 7.10
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.33 1,500 1,500 1,500 1,500 1,400 1,100 940 1,100
10 0.66 380 380 380 380 340 270 240 270
30 2.0 42 42 42 42 38 30 26 30
50 3.3 15 15 15 15 14 11 9.4 11
100 6.6 3.8 3.8 3.8 3.8 3.4 2.7 2.4 2.7
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/05 57/X/05 50/X/05 40/X/05 30/X/05 27/X/05 22/X/05 YE/N/05
Center luminous intensity (cd) 21,200 21,200 21,200 21,200 19,100 15,100 13,200 15,200
Rated Luminous Flux(lm) 158 158 158 158 142 121 106 129
Power Consumption (W) 7.10 7.10 7.10 7.10 7.10 7.10 7.10 7.10
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.45 850 850 850 850 760 600 530 610
10 0.91 210 210 210 210 190 150 130 150
30 2.7 24 24 24 24 21 17 15 17
50 4.5 8.5 8.5 8.5 8.5 7.6 6.0 5.3 6.1
100 9.1 2.1 2.1 2.1 2.1 1.9 1.5 1.3 1.5
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/06 57/X/06 50/X/06 40/X/06 30/X/06 27/X/06 22/X/06 YE/N/06
Center luminous intensity (cd) 15,400 15,400 15,400 15,400 13,900 11,000 9,590 11,100
Rated Luminous Flux(lm) 158 158 158 158 142 121 106 129
Power Consumption (W) 7.10 7.10 7.10 7.10 7.10 7.10 7.10 7.10
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.54 620 620 620 620 560 440 380 440
10 1.1 150 150 150 150 140 110 96 110
30 3.2 17 17 17 17 15 12 11 12
50 5.4 6.2 6.2 6.2 6.2 5.6 4.4 3.8 4.4
100 11 1.5 1.5 1.5 1.5 1.4 1.1 0.96 1.1
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/07 57/X/07 50/X/07 40/X/07 30/X/07 27/X/07 22/X/07 YE/N/07
Center luminous intensity (cd) 11,800 11,800 11,800 11,800 10,600 8,370 7,320 8,440
Rated Luminous Flux(lm) 158 158 158 158 142 121 106 129
Power Consumption (W) 7.10 7.10 7.10 7.10 7.10 7.10 7.10 7.10
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.63 470 470 470 470 420 330 290 340
10 1.3 120 120 120 120 110 84 73 84
30 3.8 13 13 13 13 12 9.3 8.1 9.4
50 6.3 4.7 4.7 4.7 4.7 4.2 3.3 2.9 3.4
100 13 1.2 1.2 1.2 1.2 1.1 0.84 0.73 0.84
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/08 57/X/08 50/X/08 40/X/08 30/X/08 27/X/08 22/X/08 YE/N/08
Center luminous intensity (cd) 8,660 8,660 8,660 8,660 7,790 6,160 5,390 6,220
Rated Luminous Flux(lm) 158 158 158 158 142 121 106 129
Power Consumption (W) 7.10 7.10 7.10 7.10 7.10 7.10 7.10 7.10
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.72 350 350 350 350 310 250 220 250
10 1.4 87 87 87 87 78 62 54 62
30 4.3 9.6 9.6 9.6 9.6 8.7 6.8 6.0 6.9
50 7.2 3.5 3.5 3.5 3.5 3.1 2.5 2.2 2.5
100 14 0.87 0.87 0.87 0.87 0.78 0.62 0.54 0.62
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/09 57/X/09 50/X/09 40/X/09 30/X/09 27/X/09 22/X/09 YE/N/09
Center luminous intensity (cd) 7,400 7,400 7,400 7,400 6,660 5,270 4,610 5,310
Rated Luminous Flux(lm) 158 158 158 158 142 121 106 129
Power Consumption (W) 7.10 7.10 7.10 7.10 7.10 7.10 7.10 7.10
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.75 300 300 300 300 270 210 180 210
10 1.5 74 74 74 74 67 53 46 53
30 4.5 8.2 8.2 8.2 8.2 7.4 5.9 5.1 5.9
50 7.5 3.0 3.0 3.0 3.0 2.7 2.1 1.8 2.1
100 15 0.74 0.74 0.74 0.74 0.67 0.53 0.46 0.53

Medium-angle type

LLF0113A Product name / SWWD010 Part No. / / Light Source
Code/
Color Rendering / Light Distribution Angle / S a / BK b / S c / C d / CE e / 1 f
  • The product names in the following specification tables refer only to the Light Source Code, Color Rendering and light distribution angle.
  • a: Mounting type [S] = Standard mounting
  • b: Body color ［ BK］ = Charcoal gray
  • c: Control [S] = ON/OFF control
  • d: Coating specification ［ C］ = heavy salt resistant
  • e: Standard [CE] = CE/PSE standard [TS TS] = TIS TIS
    Standard[UL]=UL/cUL
    *Medium angle type 2200K is only PSE compliant
  • f: Number of editions [1] = 1 edition

1/2 Beam angle

Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/10 57/X/10 50/X/10 40/X/10 30/X/10 27/X/10 22/X/10 YE/N/10
Center luminous intensity (cd) 18,900 18,900 18,900 18,900 15,700 15,700 12,600 17,300
Rated Luminous Flux(lm) 524 524 524 524 437 437 349 480
Power Consumption (W) 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 0.79 760 760 760 760 630 630 500 690
10 1.6 190 190 190 190 160 160 130 170
30 4.7 21 21 21 21 17 17 14 19
50 7.9 7.6 7.6 7.6 7.6 6.3 6.3 5.0 6.9
100 16 1.9 1.9 1.9 1.9 1.6 1.6 1.3 1.7
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/20 57/X/20 50/X/20 40/X/20 30/X/20 27/X/20 22/X/20 YE/N/20
Center luminous intensity (cd) 6,790 6,790 6,790 6,790 5,660 5,660 4,530 6,230
Rated Luminous Flux(lm) 524 524 524 524 437 437 349 480
Power Consumption (W) 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 1.6 270 270 270 270 230 230 180 250
10 3.2 68 68 68 68 57 57 45 62
30 9.5 7.5 7.5 7.5 7.5 6.3 6.3 5.0 6.9
50 16 2.7 2.7 2.7 2.7 2.3 2.3 1.8 2.5
100 32 0.68 0.68 0.68 0.68 0.57 0.57 0.45 0.62
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/30 57/X/30 50/X/30 40/X/30 30/X/30 27/X/30 22/X/30 YE/N/30
Center luminous intensity (cd) 2,960 2,960 2,960 2,960 2,470 2,470 1,970 2,710
Rated Luminous Flux(lm) 524 524 524 524 437 437 349 480
Power Consumption (W) 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 2.4 120 120 120 120 99 99 79 110
10 4.8 30 30 30 30 25 25 20 27
30 15 3.3 3.3 3.3 3.3 2.7 2.7 2.2 3.0
50 24 1.2 1.2 1.2 1.2 0.99 0.99 0.79 1.1
100 48 0.30 0.30 0.30 0.30 0.25 0.25 0.20 0.27
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/50 57/X/50 50/X/50 40/X/50 30/X/50 27/X/30 22/X/50 YE/N/50
Center luminous intensity (cd) 1,050 1,050 1,050 1,050 876 876 701 964
Rated Luminous Flux(lm) 524 524 524 524 437 437 349 480
Power Consumption (W) 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
5 5.1 42 42 42 42 35 35 28 39
10 10 11 11 11 11 8.8 8.8 7.0 9.6
30 31 1.2 1.2 1.2 1.2 0.97 0.97 0.78 1.1
50 51 0.42 0.42 0.42 0.42 0.35 0.35 0.28 0.39
100 102 0.11 0.11 0.11 0.11 0.088 0.088 0.070 0.096
  • Body: Aluminum die casting
    Front cover: Polycarbonate
    Secondary lens: Acrylic
    Rated Voltage: AC100～240V
    Ambient temperature: -25~50 °C
    Waterproof and dustproof: IP66
    Light source life: 50,000 hours (lumen maintenance factor 70%)
    Power supply: Built in
    Weight: 2.5 kg
  • ON/OFF type Rated Luminous Flux Power Consumption
    Ultra narrow-angle (1.5°) 139 lm 6.60W
    Narrow-angle (2.5 - 9°) 106-158 lm 7.10 W
    Medium-angle (10 - 50°) 349-524 lm 10.0 W
    • Power consumption is at AC 100V

You can calculate the illuminance and number of fixtures required here.

Start the illuminance calculation
