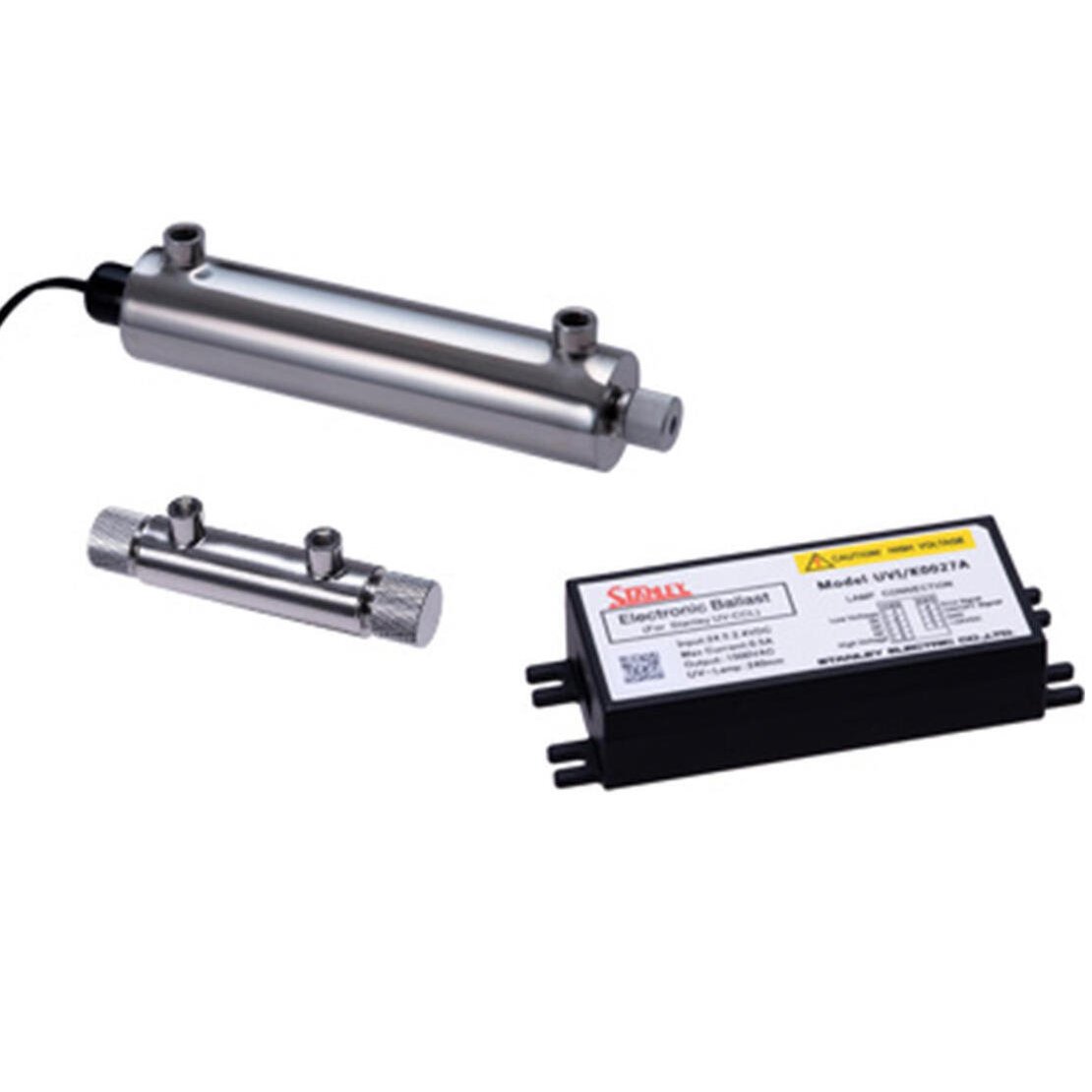

[Disinfection for running water] US/30F150/S4, UV-CCL reactor
- Part name US/30F150/S4
- Max water flow [L/min] 2
- UV radiation intensity [μW/cm2] 7
- Power consumption [W] 6.7
- Body material SUS
- Fittings [inch] Outer diameter φ8~inner diameter φ6mm
- Size(L×W×H) [mm] 150×30×30
Applications
Water purifier, water dispenser, water heaters, flow measurement in medical devices
- Reduce exchange frequency because of its lifetime 20,000Hours*1 (About 5years) ＊2.
- It doesn’t use filament at electrode which make this product robust and insensitive to vibrations. Also, it doesn’t unlit suddenly.
- Able to prevent to rise water temperature in the unit by repeating the lamp ON/OFF lighting.
*1: Product life definition... When the UV irradiance of a cold cathode UV lamp falls below 7μW/㎠.
*2:When the annual lighting time is 4000 hours.
Inverters are also available for those who use our UV-CCL(L:240mm). Basically UV-CCL reactor and inverter are sold as a set.
Outline dimensions (Unit:mm)
Downloading Materials
Disclaimer
- Stanley Electric Co., Ltd. shall not be liable for any disadvantage, damage, liability for any cause of action, or any other damage or loss arising out of the use of the downloaded data, or inability or inability to use the downloaded data.
- The Data is provided to the User on an “AS IS” basis, and Stanley Electric Co.
- This data is provided “as is” without warranty of any kind, either express or implied.
Reproduction or duplication of the Data, in whole or in part, is strictly prohibited. - Stanley Electric Co. Ltd. reserves the right to change the data without notice.
- Only representative models are shown in the product diagrams. For product diagrams of requested models, please contact us via the contact page.
