[Disinfection for stored water] ULM1B, UV-C LED unit

Downloading Materials
  • Mercury Free
  • High Efficiency
  • For Stored Water
  • Part name ULM1B

Applications

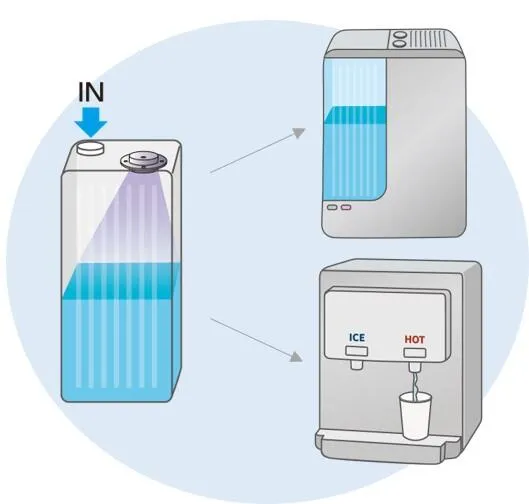

Water disinfection for storage tank application (ex. Drink dispenser, humidifier, etc.)
 *Precautions for handling this product: Please refrain from using the UV light directly irradiated to the human body

An easy-to-install waterproof unit specialized in disinfecting storage water.
  • High Performance : Equipped with 265nm UV-C LEDs that have high disinfection capability for viruses and bacteria, including chlorine-resistant microorganisms.
  • Immediacy : Can utilize high disinfection effect immediately upon startup.
  • Durability : Achieves high durability by adopting metallic housing, which does notaffected by UV degradation.
  • Compact size : Easily mounted in a narrow space.
  • Water proof : The irradiation side has the waterproof of IPX7 equivalency.

<Applications >

Specifications
Conditions: Ta=25°C
IF=250mA
Item Symbols MIN. TYP. MAX.
Total Power[mW] Po 10 20 ー
Peak Wavelength[nm] λp 259 265 269
Spectral half width[nm] Δλ ー 11 ー
Half UV rays irradiance angle[deg.] 2Θ1/2 ー (60) ー
Forward voltage[V] VF 5.6 6.6 7.7

Outline dimensions (Unit:mm)
