Randomly-emitting
LED Flash Lighting

Random flash illumination is achieved with only a compact module. Light can be produced without synchronizing light emission even when multiple units are installed. High dustproof and waterproof performance allows for use in any location.

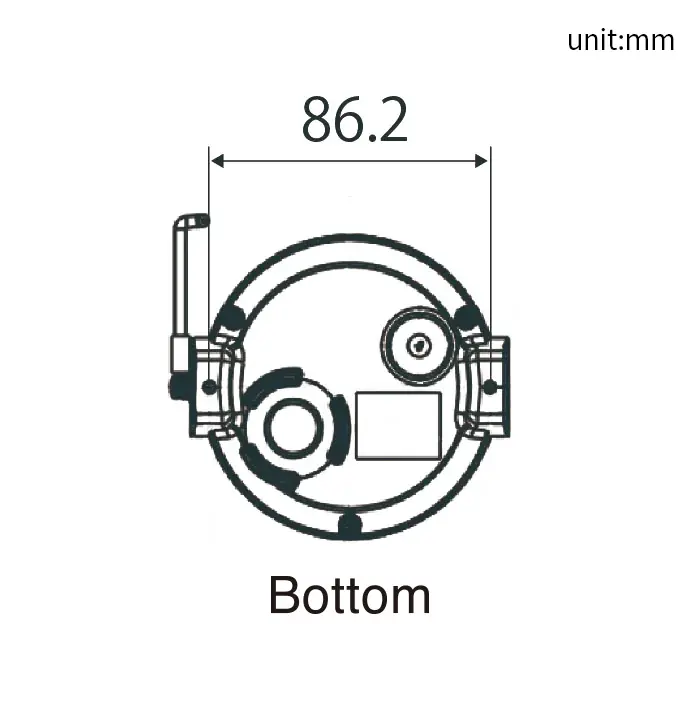

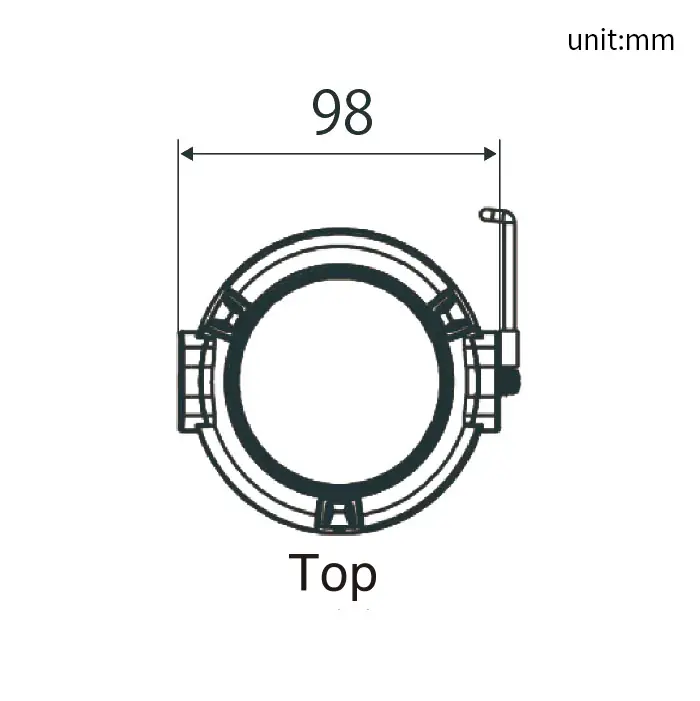

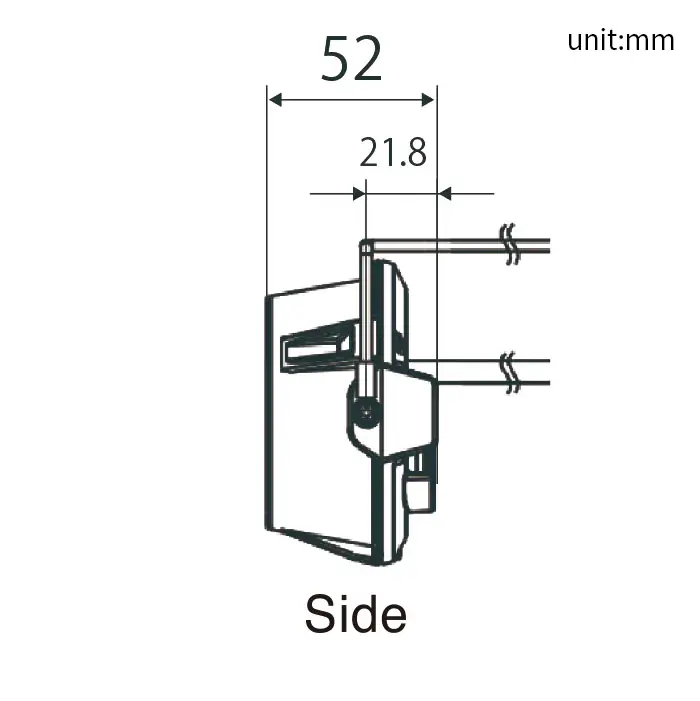

Outline dimensions

Features

  • Flash Emission

    Achieved flash duration time of 40 ms.

  • Random Emission

    Light is emitted randomly at 1.5 to 3.0 s intervals. This prevents the synchronization of luminescence even when multiple units are installed.

  • Low Power Consumption

    Low power consumption ensures energy savings.

  • Ultra-compact

    A very compact and light body at Φ98 mm and 440g.

  • Water / Dustproof

    Waterproof module that meets IP65.

LEDSFOCUS FLASH

LLM1549A

Specification

Part No. LLM1549A/LIGHTING EQU10
(Power line / Earth line, each 1000mm)
LLM1549A/LIGHTING EQU10
(Power line / Earth line, each 1500mm)		 1/2 Beam Angle 150°
Light Source Color Blue green（Blue 464 ～ 476nm + Green 513 ～ 543nm） Rated Constant Input Voltage DC24V
Power Consumption(W) 8.0 W (8.0 W is the instantaneous power consumption
during pulse lighting; the average power consumption is
about 0.15 W assuming a single flash every 2.25 s)		 Emission Interval Random emission between 1.5-3.0 s
Ambient Temperature -10℃～40℃ Water and Dust Resistance IP65
Life of LED’s Light Source 40,000 h (lumen maintenance factor 70%) Material Body: Aluminum die-casting
Front cover: Polycarbonate
Weight 440g Optional Parts (sold separately) Bracket
※Power source is not sold by our company.
