LLM1546A
Compact LED Graphic Unit that can smartly illuminate
letters and designs with light

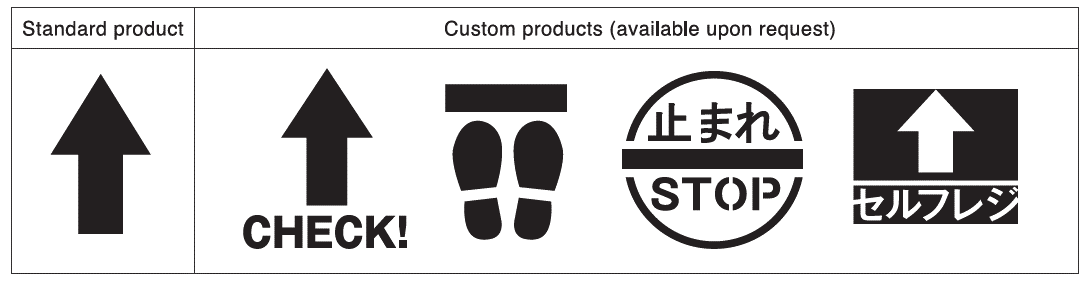

This product realizes smart alerts and indicates points of emphasis with optical drawings. Low power consumption and a compact design means it can be incorporated.Multiple drawing designs available to accommodate a variety of situations.
Outline dimensions
Features
LEDS HIGHLIGHT
LLM1546A
Features
| Part No. | LLM1546A | Luminous color | Green |
|---|---|---|---|
| Power Consumption | 6.3 W (typ) | Illuminance | 1,500 lx (When irradiated at 1m in front) |
| Weight | approx. 350 g (excluding optional stay) | Rated Input Voltage | DC 24V (Please consult separately for DC 12 V) |
| Flashing | 0.9sec、0.6sec、0.3sec | Operating temperature range |
-20 ~ 50 °C |
| * | ・Power source is not sold by our company. ・Dimming and color adjustment functions are not available. ・Outdoor use is not supported when used alone (indoor use only) |
| Part No. | LLM1546A | Luminous color | White |
|---|---|---|---|
| Power Consumption | 6.3 W (typ) | Illuminance | 980 lx (When irradiated at 1m in front) |
| Weight | approx. 350 g (excluding optional stay) | Rated Input Voltage | DC 24V (Please consult separately for DC 12 V) |
| Flashing | 0.9sec、0.6sec、0.3sec | Operating temperature range |
-20 ~ 50 °C |
| * | ・Power source is not sold by our company. ・Dimming and color adjustment functions are not available. ・Outdoor use is not supported when used alone (indoor use only) |
| Part No. | LLM1546A | Luminous color | Blue |
|---|---|---|---|
| Power Consumption | 6.3 W (typ) | Illuminance | 85 lx (When irradiated at 1m in front) |
| Weight | approx. 350 g (excluding optional stay) | Rated Input Voltage | DC 24V (Please consult separately for DC 12 V) |
| Flashing | 0.9sec、0.6sec、0.3sec | Operating temperature range |
-20 ~ 50 °C |
| * | ・Power source is not sold by our company. ・Dimming and color adjustment functions are not available. ・Outdoor use is not supported when used alone (indoor use only) |
| Part No. | LLM1546A | Luminous color | Amber |
|---|---|---|---|
| Power Consumption | 6.3 W (typ) | Illuminance | 570 lx (When irradiated at 1m in front) |
| Weight | approx. 350 g (excluding optional stay) | Rated Input Voltage | DC 24V (Please consult separately for DC 12 V) |
| Flashing | 0.9sec、0.6sec、0.3sec | Operating temperature range |
-20 ~ 50 °C |
| * | ・Power source is not sold by our company. ・Dimming and color adjustment functions are not available. ・Outdoor use is not supported when used alone (indoor use only) |
| Part No. | LLM1546A | Luminous color | Red |
|---|---|---|---|
| Power Consumption | 5.0 W (typ) | Illuminance | 390 lx (When irradiated at 1m in front) |
| Weight | approx. 350 g (excluding optional stay) | Rated Input Voltage | DC 24V (Please consult separately for DC 12 V) |
| Flashing | 0.9sec、0.6sec、0.3sec | Operating temperature range |
-20 ~ 50 °C |
| * | ・Power source is not sold by our company. ・Dimming and color adjustment functions are not available. ・Outdoor use is not supported when used alone (indoor use only) |
You can calculate the illuminance and number of fixtures required here.
Start the illuminance calculationDownloading Materials
