LLM1389A

Downloading Materials
  • Vibration Resistance 1G
  • Waterproof IP65
  • Noise Resistance
  • Heat Resistant
  • UV Resistant

Low power linear
lighting with efficiently focused narrow light, housed in a compact body

We designed a lens that uses ultra-narrow light distribution technology instead of a light-shielding method.
By efficiently squeezing the LED light to create a narrow ray of light, we have realized a low-power and small-sized linear distribution lighting that can be used for various productions with just a few LEDs.
Abundant color variations are available to meet the demands for a wide range of light-up effects.
Possessing a high level of resistance to water and dust, thae lighting fixture can be used in any kind of environment.

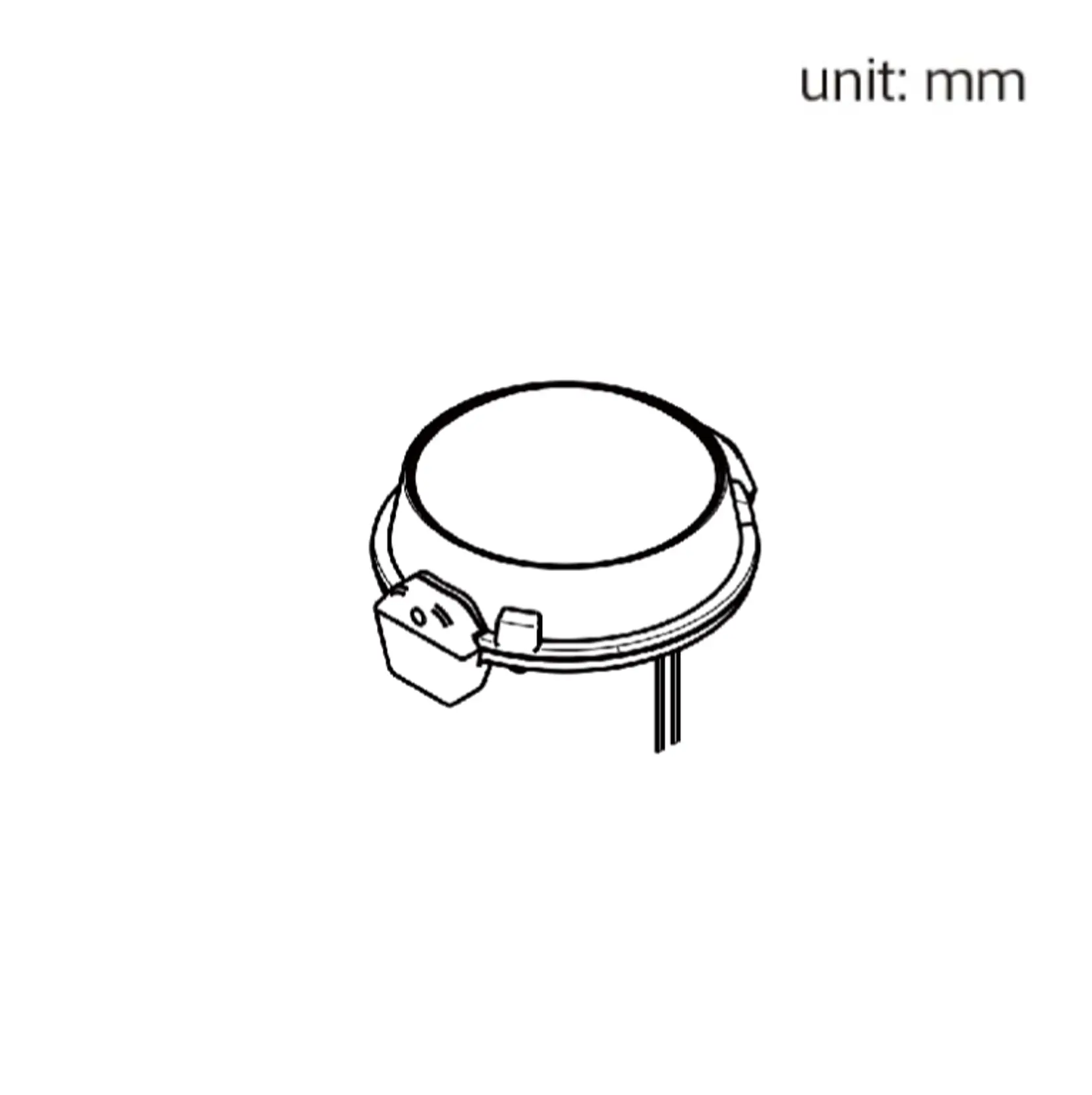

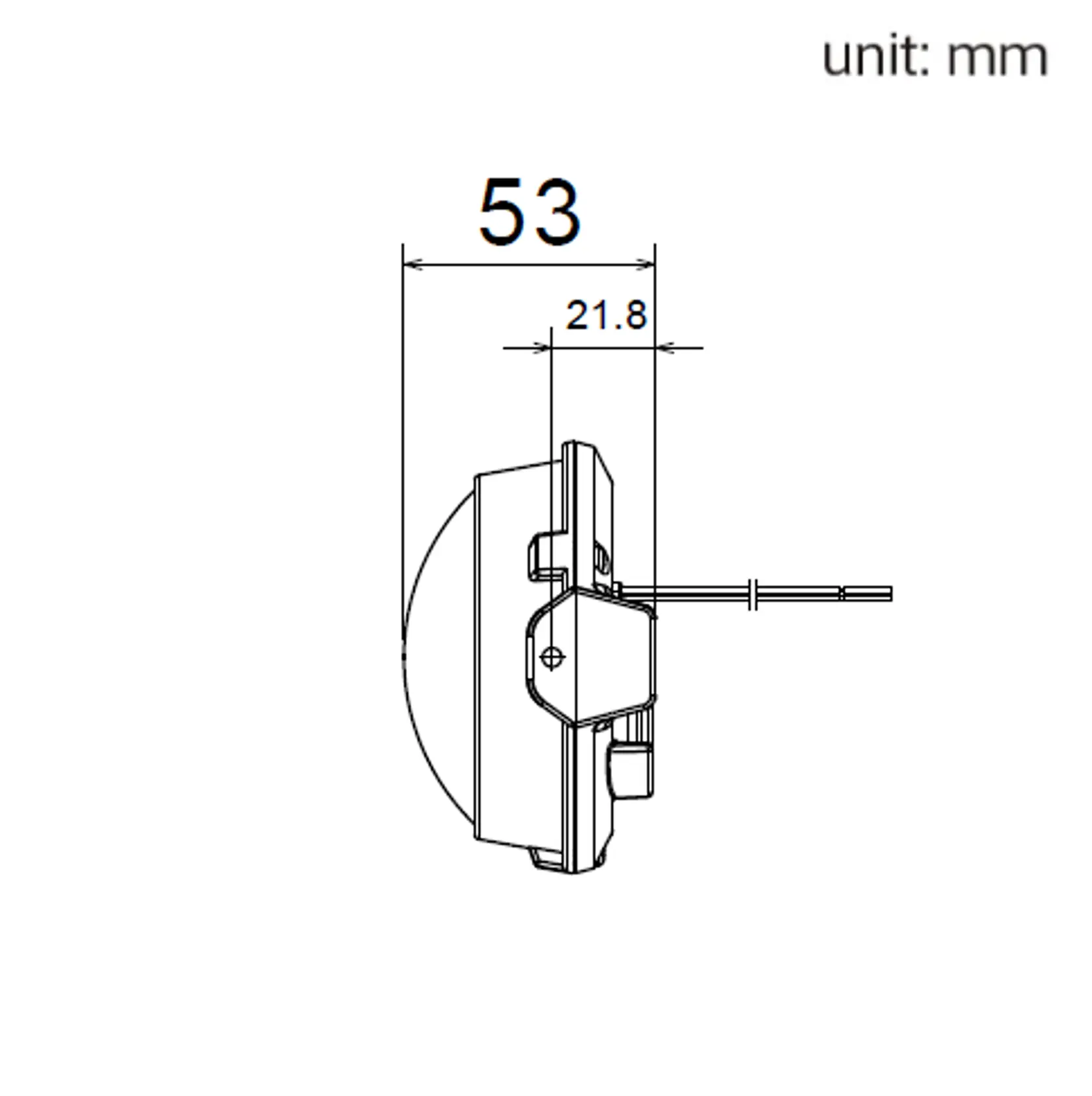

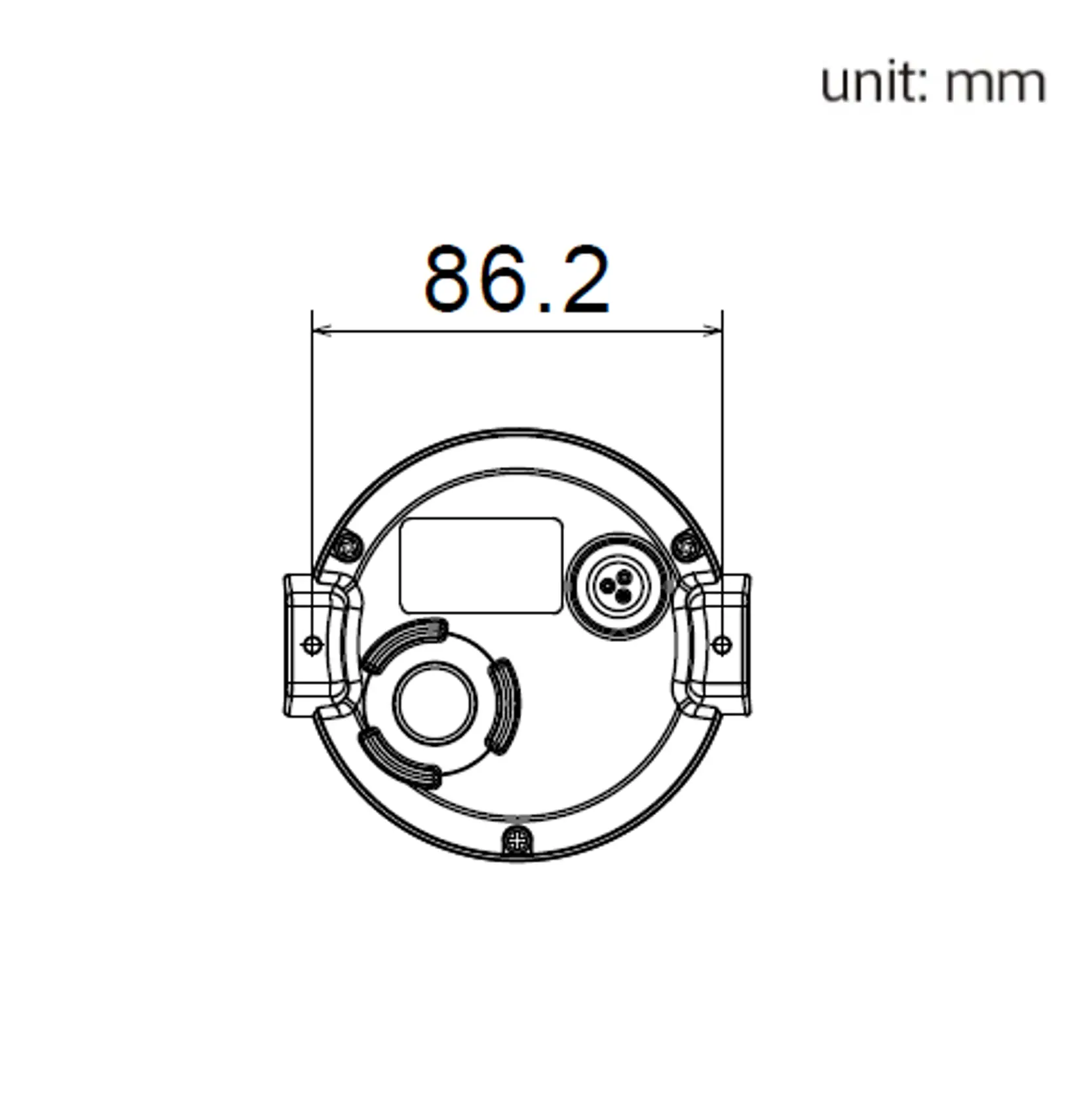

Outline dimensions

Features

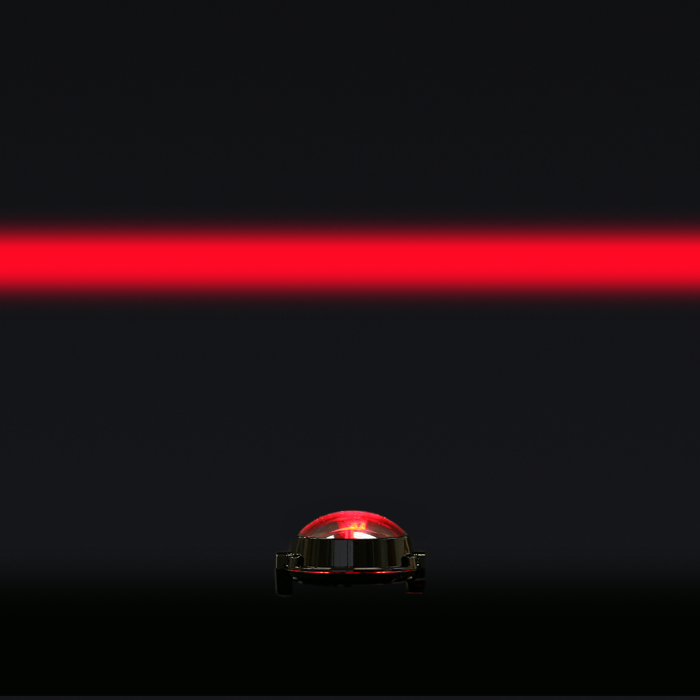

  • Cingulate light distribution

    Materia lized clear and cingulate light distribution.

  • Variety in color

    In addition to white of 5000K, 4000K, and 3000K, there is red, green blue and Amber available.

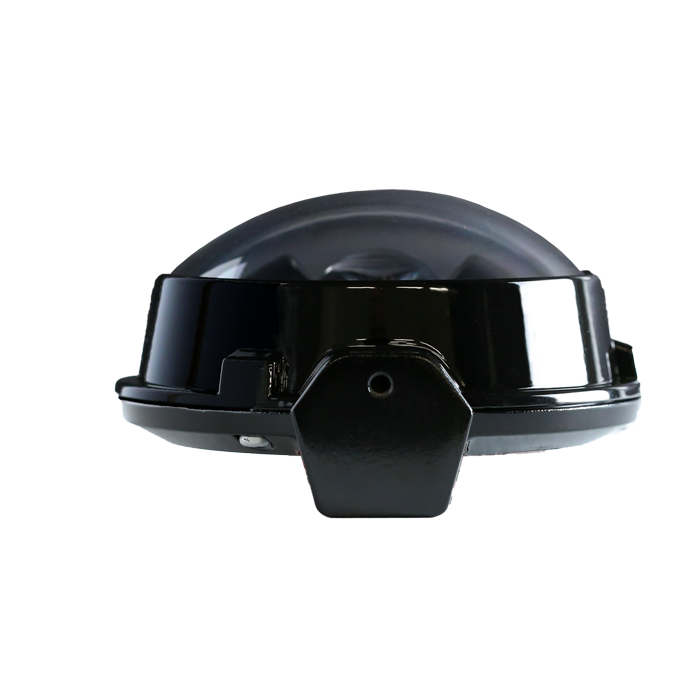

  • Compact and lightweight

    A very compact and light body with φ98mm and 230g.

  • Low power consumption

    Operates with power as low as 4.9~6.8W.

  • Water and dust proof

    Waterproof module that supports IP65.

Adoption Example

LLM1389A

List of products by specifications

LLM1389A Product name /

1/2 Beam angle

Color variation 5000K 4000K 3000K RED GREEN BLUE AMBER
Part No. LIGHTING
EQU50		 LIGHTING
EQU40		 LIGHTING
EQU30		 LIGHTING
EQU60		 LIGHTING
EQU70		 LIGHTING
EQU80		 LIGHTING
EQU90
1/2 Beam angle (°) short end 2.5° 2.5° 2.5° 2.8° 2.5° 2.5° 2.8°
1/2 Beam angle (°) longitudinal 70° 70° 70° 78° 76° 76° 70°
Color temp./Color lineup 5000K 4000K 3000K Red Green Blue Amber
Center luminous intensity (cd) 4,120 3,620 3,460 980 2,780 1,190 2,840
Color rendering index (Ra) 70 80 80 ー ー ー ー
Input voltage 8.5V 8.5V 8.5V 7.0V 9.5V 9.7V 8.9V
Power consumption 6.0W 6.0W 6.0W 4.9W 6.6W 6.8W 6.2W
Material Body: aluminum die-cast, / Lens: polycarbonate
Rated constant input Current 0.7A
Ambient Temperature -30℃～50℃
Water and Dust Resistance IP65
Life of LED’s Light Source 40,000h (lumen maintenance factor 70 %)
Weight 230g
Optional Parts Bracket
*Power source is not sold by our company.

You can calculate the illuminance and number of fixtures required here.
