  • LED Spotlight with Ultra Narrow Light Angle

LLM0854A

Downloading Materials
  • Vibration Resistance 1G
  • Waterproof IP65
  • Noise Resistance
  • Heat Resistant
  • UV Resistant

Spotlight with a single chip LED to realize low power consumption
and miniaturization

By efficiently harnessing the LED light to create a narrow beam, a single LED chip can be used to produce various effects, achieving spot lighting in a compact unit at low cost.
Abundant color variations are available to meet the demands for a wide range of lighting effects.
Possessing a high level of resistance to water and dust, the lighting fixture can be used in any kind of environment.

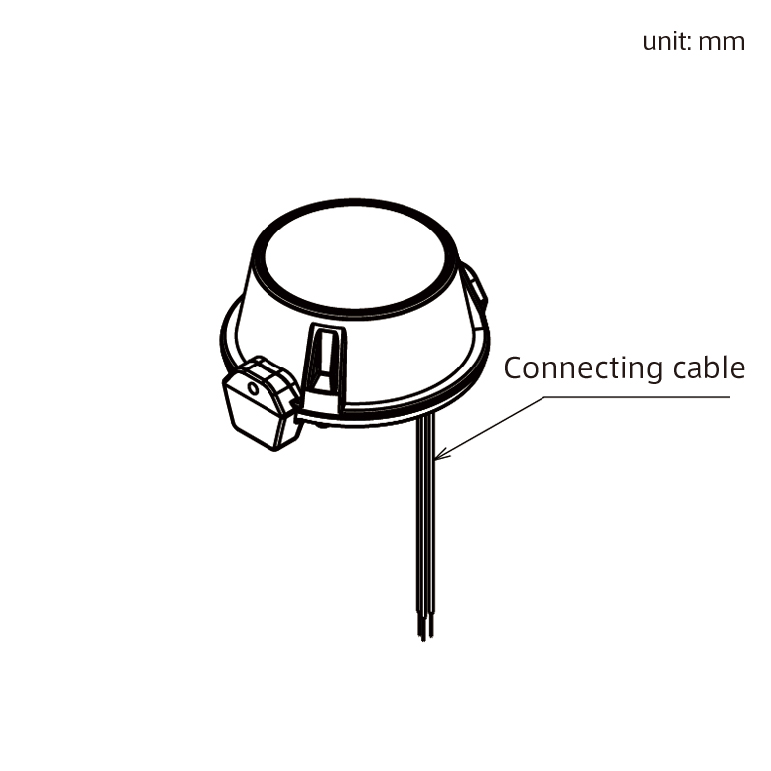

Outline dimensions

Features

  • Ultra-narrow light distribution

    Narrow angle  light distribution with a 1/2 beam angle of 2.5° has been achieved.

  • Low power consumption

    Operates with power as low as 2.9W.

  • Compact and lightweight

    A very compact and light body at φ98mm and 260g.

  • Water and dust proof

    Waterproof module that meets IP65.

  • Variety in color

    Available in 5000K, 4000K, 3000K, red, green, and blue.

Adoption Example

LLM0854A

List of products by specifications

LLM0854A Product name /

1/2 Beam angle

Color variation 5000K 4000K 3000K RED GREEN BLUE
Part No. LIGHTING
EQU50		 LIGHTING
EQU40		 LIGHTING
EQU30		 LIGHTING
EQU60		 LIGHTING
EQU70		 LIGHTING
EQU80
Center Luminosity(cd) 86,000 76,000 62,350 9,290 48,280 19,200
Rated Luminous Flux（lm） 143 117 104 40.8 92.2 56.3
1/2 Beam Angle 2.5° 2.5° 2.5° 2.6° 2.3° 2.3°
Color Rendering Index (Ra) 70 80 80 ー ー ー
Power Consumption 2.9 2.9 2.9 2.9 2.9 2.9
Water and Dust Resistance IP65
Life of LED’s Light Source 40,000h (lumen maintenance factor 70%)
Material Body: aluminum die-cast / polycarbonate Inner lens: acryl (transparent)
Weight 260g
Input Voltage(V) DC12V
Ambient Temperature -30℃～50℃
Optional Parts Bracket *Power source is sold separately.
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
1 0.24 86,000
2 0.33 21,500
5 0.54 3,440
10 0.63 860

You can calculate the illuminance and number of fixtures required here.

Start the illuminance calculation
