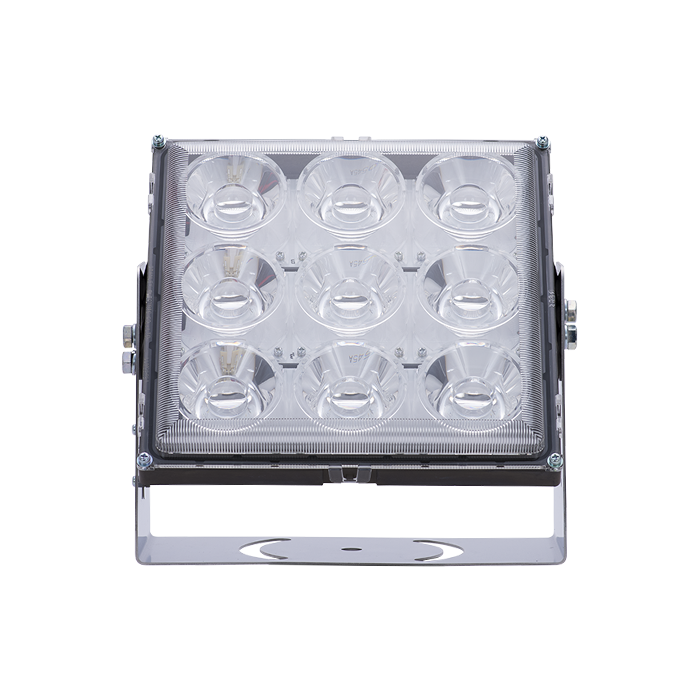

  • LED Floodlight with Ultra Narrow Light Angle (Gold)

LLM0545A

Downloading Materials
  • Vibration Resistance 1G
  • Waterproof IP65
  • Noise Resistance
  • Heat Resistant
  • UV Resistant

Achieving luminescent colors that highlight gold color

LEDSFOCUS GOLD, created based on Stanley Electric’s proprietary phosphor blending technology, create vivid, unique gold-colored light. Compared to white floodlight, illuminating golden surfaces such as temples and Buddha statues with gold light can bring out the beautiful color even more. Furthermore, non-golden objects can be dyed gold with this floodlight.

  SPECIAL PAGE
LEDSFOCUS GOLD

Outline dimensions

Features

  • Ultra narrow light angle

    Materialized the narrow-angle and oval light distribution whose 1/2 beam angle is 4°x 3°.

  • Thin and lightweight

    With 47mm thickness (light source part) and 2.3kg (bracket excluded), it can be installed at any place.

  • Low power consumption

    Power consumption is as low as 39.4W.

  • Water and dust resistance

    Available for outdoor usage with IP65.

LEDSFOCUS GOLD

LLM0545A

Specification

Part No. LLM0545A-UB Center Luminosity 667,000 cd
Power Consumption
(excl. power source)		 39.4 W Rated input constant current
(excl. power source)		 0.7A
Water and Dust Resistance IP65 Luminous Flux 3,300lm
Ambient Temperature -30～50℃ Life of LED’s Light Source 42,000h(lumen maintenance factor 70%)
Material Body: aluminum die-cast,
Outer lens: polycarbonate
Bracket (sold separately): stainless		 Optional Parts bracket, 10m cable
Weight 2.3kg Power source Placed separately (Not included with the product)
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
30 6 717
50 7.1 262
100 11.2 66
500 ー 2.5
1000 ー 0.6

You can calculate the illuminance and number of fixtures required here.

Start the illuminance calculation

Downloading Materials
