  • LEDSFOCUS PRO
  • LED floodlight with ultra-narrow light distribution

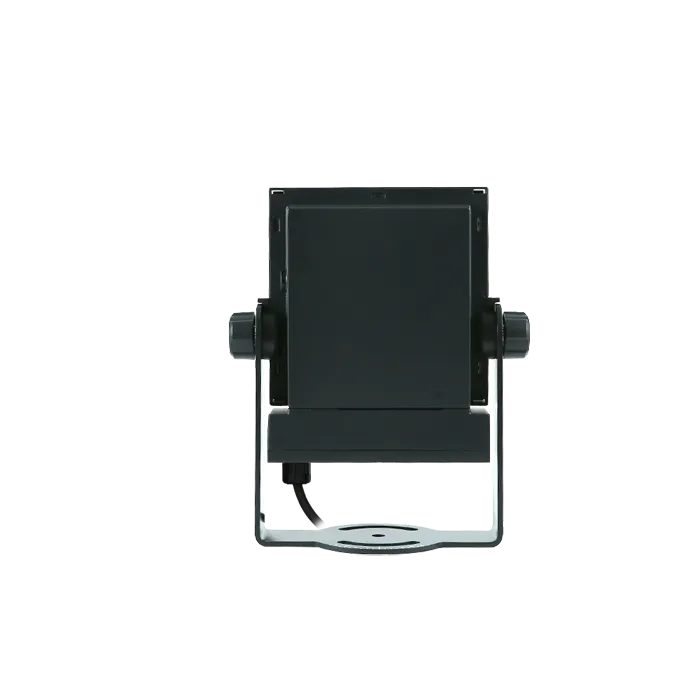

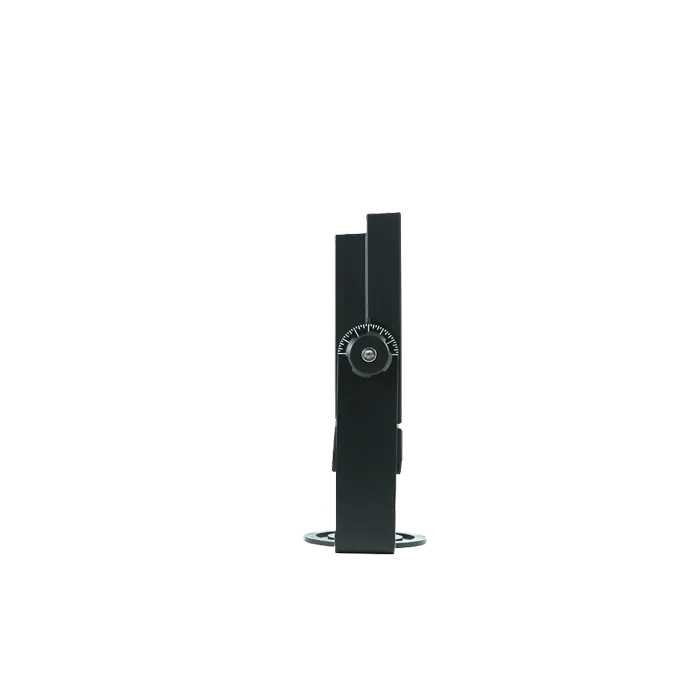

LLF0112A

  • Built-in Power Supply
  • Dimmable Type
  • ON/OFF Type
Downloading Materials
  • Vibration Resistance 1G
  • Waterproof IP66
  • Noise Resistance
  • Heat Resistant
  • UV Resistant
  • Heavy Salt Resistance

Wide range of variations to meet every need

Maximizing the potential of LED lighting, we have a chieved an ultra-narrow light distribution which can be used invarious light-up shows. This spotlight can deliver light to where it could not reach before. Our unique optical system shows beautiful projections with control of light distribution angles by 1° and provides a wide variety of colors, to create beautiful illuminations that meet your requests. Possessing high level of resistance to water and dust, the lighting fixture can be used in any kind of environment.

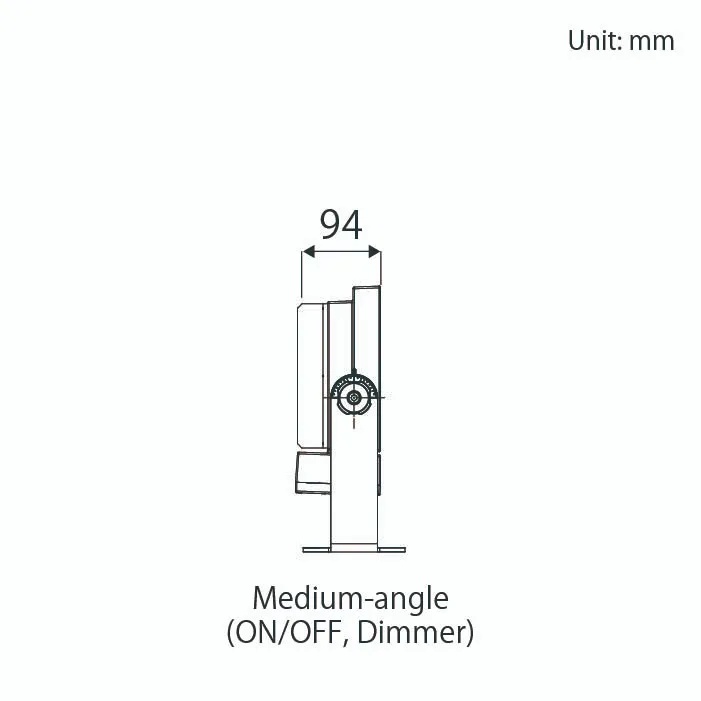

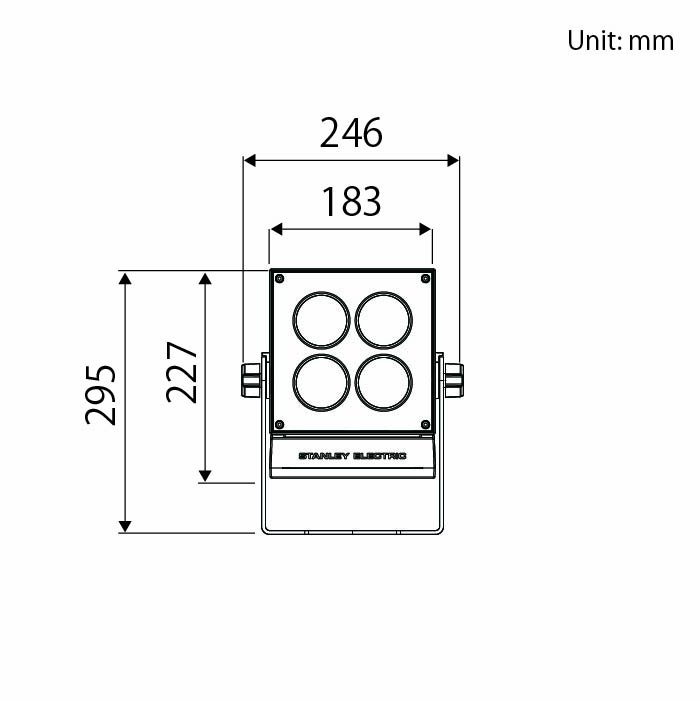

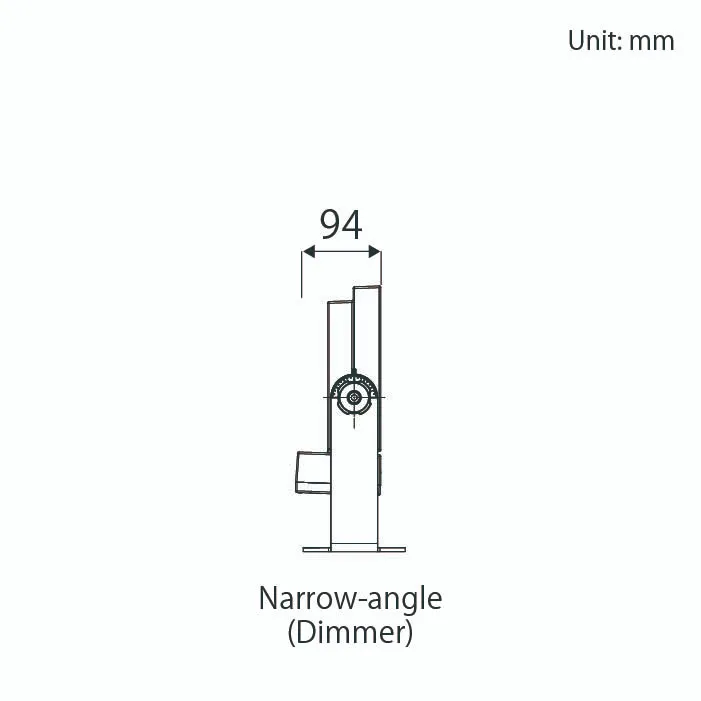

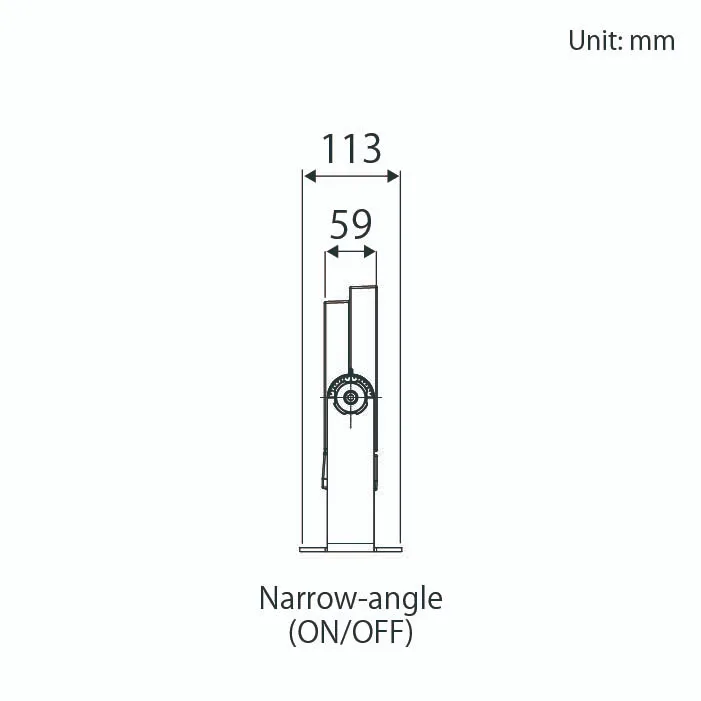

Outline dimensions

Features

  • Ultra-narrow light distribution

    1/2 beam angle, ultra-narrow light distribution with a minimum of 1.5 ° enables bright illumination at distant objects.

  • Light distribution control

    Light distribution can be fine-tuned by 1 ° , from 1.5 to 10 °, accurately casting light on objects. In addition,a high output medium angle light distribution of 10 to 30 ° is available for various applications.

  • Beautiful light projection

    Our unique LED / lens design technology can achieve beautiful and uniform light projection.

  • Heavy duty

    Waterproof and dustproof to provide maximum performance even in harsh environments.

  • Wide variety of customization

    Light distribution, light color, size, body color, and optional parts can be freely customized, making this product suitable for any occasion.

Adoption Example

LLF0112A ON/OFF type

List of products by specifications

Narrow-angle type

LLF0112A Product name / MWWD017 Control Name / / Light Source
Code/
Color Rendering / Light
Distribution Angle / S a / BK b / S c / C d / CE e / 1 f
  • The Part No. in the table below only indicates the Light Source Code, Color Rendering and light distribution angle.
  • a:Installed type [S] = Standard installation
  • b:Body color [BK] = Charcoal grey
  • c:Control [S] = ON/OFF Control
  • d:Painting specification [C] = Heavy-duty salt resistance
  • e:Standard [CE] = CE/PSE
    Standard [TS] = TIS
    Standard[UL]=UL/cUL
    ※Medium-angle type 2200K conforms only to PSE.
  • f:Ver. [1] = Version 1

1/2 Beam angle

Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. ー ー 50/T/XN ー ー ー ー ー
Center luminous intensity (cd) ー ー 797,000 ー ー ー ー ー
Rated Luminous Flux（lm） ー ー 565 ー ー ー ー ー
Power Consumption(W) ー ー 16.0 ー ー ー ー ー
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 0.28 ー ー 7,300 ー ー ー ー ー
30 0.84 ー ー 810 ー ー ー ー ー
50 1.4 ー ー 290 ー ー ー ー ー
100 2.8 ー ー 73 ー ー ー ー ー
250 7.0 ー ー 12 ー ー ー ー ー
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/VN 57/X/VN 50/X/VN 40/X/VN 30/X/VN 27/X/VN 22/X/VN YE/N/VN
Center luminous intensity (cd) 546,000 546,000 546,000 546,000 491,000 417,000 364,000 455,000
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 0.38 5,200 5,200 5,200 5,200 4,700 4,000 3,500 4,200
30 1.2 580 580 580 580 520 450 390 470
50 1.9 210 210 210 210 190 160 140 170
100 3.8 52 52 52 52 47 40 35 42
250 9.6 8.3 8.3 8.3 8.3 7.5 6.4 5.6 6.7
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/03 57/X/03 50/X/03 40/X/03 30/X/03 27/X/03 22/X/03 YE/N/03
Center luminous intensity (cd) 372,000 372,000 372,000 372,000 335,000 284,000 248,000 310,000
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 0.45 3,600 3,600 3,600 3,600 3,200 2,800 2,500 3,000
30 1.4 400 400 400 400 360 310 270 330
50 2.3 140 140 140 140 130 110 98 120
100 4.5 36 36 36 36 32 28 25 30
250 11 5.7 5.7 5.7 5.7 5.1 4.5 3.9 4.8
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/04 57/X/04 50/X/04 40/X/04 30/X/04 27/X/04 22/X/04 YE/N/04
Center luminous intensity (cd) 193,000 193,000 193,000 193,000 174,000 147,000 129,000 161,000
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 0.66 1,900 1,900 1,900 1,900 1,700 1,500 1,300 1,600
30 2.0 210 210 210 210 190 160 140 170
50 3.3 75 75 75 75 68 58 51 62
100 6.6 19 19 19 19 17 15 13 16
250 17 3.0 3.0 3.0 3.0 2.7 2.3 2.0 2.5
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/05 57/X/05 50/X/05 40/X/05 30/X/05 27/X/05 22/X/05 YE/N/05
Center luminous intensity (cd) 109,000 109,000 109,000 109,000 97,900 83,100 72,700 90,800
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 0.91 1,100 1,100 1,100 1,100 970 830 720 900
30 2.7 120 120 120 120 110 92 80 99
50 4.5 43 43 43 43 39 33 29 36
100 9.1 11 11 11 11 9.7 8.3 7.2 9.0
250 23 1.7 1.7 1.7 1.7 1.5 1.3 1.2 1.4
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/06 57/X/06 50/X/06 40/X/06 30/X/06 27/X/06 22/X/06 YE/N/06
Center luminous intensity (cd) 79,600 79,600 79,600 79,600 71,600 60,700 53,200 66,400
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.1 780 780 780 780 710 610 530 660
30 3.2 87 87 87 87 78 67 59 73
50 5.4 31 31 31 31 28 24 21 26
100 11 7.8 7.8 7.8 7.8 7.1 6.1 5.3 6.6
250 27 1.3 1.3 1.3 1.3 1.1 0.97 0.85 1.0
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/07 57/X/07 50/X/07 40/X/07 30/X/07 27/X/07 22/X/07 YE/N/07
Center luminous intensity (cd) 60,600 60,600 60,600 60,600 54,500 46,300 40,500 50,500
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.3 600 600 600 600 540 460 400 500
30 3.8 66 66 66 66 60 51 45 56
50 6.3 24 24 24 24 21 18 16 20
100 13 6.0 6.0 6.0 6.0 5.4 4.6 4.0 5.0
250 31 0.96 0.96 0.96 0.96 0.86 0.74 0.64 0.80
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/08 57/X/08 50/X/08 40/X/08 30/X/08 27/X/08 22/X/08 YE/N/08
Center luminous intensity (cd) 45,500 45,500 45,500 45,500 40,900 34,700 30,400 37,900
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.4 450 450 450 450 410 350 300 380
30 4.3 50 50 50 50 45 38 34 42
50 7.2 18 18 18 18 16 14 12 15
100 14 4.5 4.5 4.5 4.5 4.1 3.5 3.0 3.8
250 36 0.72 0.72 0.72 0.72 0.65 0.55 0.48 0.60
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/09 57/X/09 50/X/09 40/X/09 30/X/09 27/X/09 22/X/09 YE/N/09
Center luminous intensity (cd) 37,700 37,700 37,700 37,700 33,900 28,800 25,200 31,400
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.5 370 370 370 370 330 290 250 310
30 4.5 41 41 41 41 37 32 28 35
50 7.5 15 15 15 15 13 11 10 13
100 15 3.7 3.7 3.7 3.7 3.3 2.9 2.5 3.1
250 38 0.59 0.59 0.59 0.59 0.53 0.46 0.40 0.50

Medium-angle type

LLF0112A Product name / MWWD028 Control Name / / Light Source
Code/
Color Rendering / Light
Distribution Angle / S a / BK b / S c / C d / CE e / 1 f
  • The Part No. in the table below only indicates the Light Source Code, Color Rendering and light distribution angle.
  • a:Installed type [S] = Standard installation
  • b:Body color [BK] = Charcoal grey
  • c:Control [S] = ON/OFF Control
  • d:Painting specification [C] = Heavy-duty salt resistance
  • e:Standard [CE] = CE/PSE
    Standard [TS] = TIS
    Standard[UL]=UL/cUL
    ※Medium-angle type 2200K conforms only to PSE.
  • f:Ver. [1] = Version 1

1/2 Beam angle

Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/10 57/X/10 50/X/10 40/X/10 30/X/10 27/X/10 22/X/10 YE/N/10
Center luminous intensity (cd) 91,800 91,800 91,800 91,800 76,500 76,500 76,500 84,200
Rated Luminous Flux（lm） 2,350 2,350 2,350 2,350 1,960 1,960 1,960 2,160
Power Consumption(W) 28.3 28.3 28.3 28.3 28.3 28.3 28.3 28.3
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.6 920 920 920 920 770 770 610 840
30 4.7 100 100 100 100 85 85 68 94
50 7.9 37 37 37 37 31 31 24 34
100 16 9.2 9.2 9.2 9.2 7.7 7.7 6.1 8.4
250 39 1.5 1.5 1.5 1.5 1.2 1.2 0.98 1.3
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/20 57/X/20 50/X/20 40/X/20 30/X/20 27/X/20 22/X/20 YE/N/20
Center luminous intensity (cd) 33,700 33,700 33,700 33,700 28,100 28,100 22,500 30,900
Rated Luminous Flux（lm） 2,350 2,350 2,350 2,350 1,960 1,960 1,570 2,160
Power Consumption(W) 28.3 28.3 28.3 28.3 28.3 28.3 28.3 28.3
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 3.2 340 340 340 340 280 280 230 310
30 9.5 37 37 37 37 31 31 25 34
50 16 13 13 13 13 11 11 9.0 12
100 32 3.4 3.4 3.4 3.4 2.8 2.8 2.3 3.1
250 79 0.54 0.54 0.54 0.54 0.45 0.45 0.36 0.49
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/30 57/X/30 50/X/30 40/X/30 30/X/30 27/X/30 22/X/30 YE/N/30
Center luminous intensity (cd) 14,600 14,600 14,600 14,600 12,200 12,200 9,760 13,400
Rated Luminous Flux（lm） 2,350 2,350 2,350 2,350 1,960 1,960 1,570 2,160
Power Consumption(W) 28.3 28.3 28.3 28.3 28.3 28.3 28.3 28.3
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 4.8 150 150 150 150 120 120 98 130
30 15 16 16 16 16 14 14 11 15
50 24 5.8 5.8 5.8 5.8 4.9 4.9 3.9 5.4
100 48 1.5 1.5 1.5 1.5 1.2 1.2 0.98 1.3
250 121 0.23 0.23 0.23 0.23 0.20 0.20 0.16 0.21
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/50 57/X/50 50/X/50 40/X/50 30/X/50 27/X/50 22/X/50 YE/N/50
Center luminous intensity (cd) 5,260 5,260 5,260 5,260 4,380 4,380 3,510 4,820
Rated Luminous Flux（lm） 2,350 2,350 2,350 2,350 1,960 1,960 1,570 2,160
Power Consumption(W) 28.3 28.3 28.3 28.3 28.3 28.3 28.3 28.3
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 10 53 53 53 53 44 44 35 48
30 31 5.8 5.8 5.8 5.8 4.9 4.9 3.9 5.4
50 51 2.1 2.1 2.1 2.1 1.8 1.8 1.4 1.9
100 102 0.53 0.53 0.53 0.53 0.44 0.44 0.35 0.48
250 256 0.084 0.084 0.084 0.084 0.070 0.070 0.056 0.077

LLF0112A Dimmable type

List of products by specifications

Narrow-angle type

LLF0112A Product name / MWWD017 Control Name / / Light Source
Code/
Color Rendering / Light
Distribution Angle / S a / BK b / c / C d / CE e / 1 f
  • The Part No. in the table below only indicates the Light Source Code, Color Rendering and light distribution angle.
  • a:Installed type [S] = Standard installation
  • b:Body color [BK] = Charcoal grey
  • c:Control [ C ] = DALI dimming (Curve: Log)
    Control [ F ] = DALI dimming (Curve: Linear)
    Control [ D ] = DMX dimming (Curve: Log)
    Control [ G ] = DMX dimming (Curve: Linear)
  • d:Painting specification [C] =
    Heavy-duty salt resistance
  • e:Standard [CE] = CE/PSE
    Standard [TS] = TIS
    Standard[UL]=UL/cUL
    ※Medium-angle type 2200K conforms only to PSE.
  • f:Ver. [1] = Version 1

1/2 Beam angle

Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/VN 57/X/VN 50/X/VN 40/X/VN 30/X/VN 27/X/VN 22/X/VN YE/N/VN
Center luminous intensity (cd) 546,000 546,000 546,000 546,000 491,000 417,000 364,000 455,000
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) DALI dimming 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
DMX dimming 17.8 17.8 17.8 17.8 17.8 17.8 17.8 17.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 0.38 5,200 5,200 5,200 5,200 4,700 4,000 3,500 4,200
30 1.2 580 580 580 580 520 450 390 470
50 1.9 210 210 210 210 190 160 140 170
100 3.8 52 52 52 52 47 40 35 42
250 9.6 8.3 8.3 8.3 8.3 7.5 6.4 5.6 6.7
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/03 57/X/03 50/X/03 40/X/03 30/X/03 27/X/03 22/X/03 YE/N/03
Center luminous intensity (cd) 372,000 372,000 372,000 372,000 335,000 284,000 248,000 310,000
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) DALI dimming 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
DMX dimming 17.8 17.8 17.8 17.8 17.8 17.8 17.8 17.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 0.45 3,600 3,600 3,600 3,600 3,200 2,800 2,500 3,000
30 1.4 400 400 400 400 360 310 270 330
50 2.3 140 140 140 140 130 110 98 120
100 4.5 36 36 36 36 32 28 25 30
250 11 5.7 5.7 5.7 5.7 5.1 4.5 3.9 4.8
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/04 57/X/04 50/X/04 40/X/04 30/X/04 27/X/04 22/X/04 YE/N/04
Center luminous intensity (cd) 193,000 193,000 193,000 193,000 174,000 147,000 129,000 161,000
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) DALI dimming 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
DMX dimming 17.8 17.8 17.8 17.8 17.8 17.8 17.8 17.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 0.66 1,900 1,900 1,900 1,900 1,700 1,500 1,300 1,600
30 2.0 210 210 210 210 190 160 140 170
50 3.3 75 75 75 75 68 58 51 62
100 6.6 19 19 19 19 17 15 13 16
250 17 3.0 3.0 3.0 3.0 2.7 2.3 2.0 2.5
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/05 57/X/05 50/X/05 40/X/05 30/X/05 27/X/05 22/X/05 YE/N/05
Center luminous intensity (cd) 109,000 109,000 109,000 109,000 97,900 83,100 72,700 90,800
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) DALI dimming 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
DMX dimming 17.8 17.8 17.8 17.8 17.8 17.8 17.8 17.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 0.91 1,100 1,100 1,100 1,100 970 830 720 900
30 2.7 120 120 120 120 110 92 80 99
50 4.5 43 43 43 43 39 33 29 36
100 9.1 11 11 11 11 9.7 8.3 7.2 9.0
250 23 1.7 1.7 1.7 1.7 1.5 1.3 1.2 1.4
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/06 57/X/06 50/X/06 40/X/06 30/X/06 27/X/06 22/X/06 YE/N/06
Center luminous intensity (cd) 79,600 79,600 79,600 79,600 71,600 60,700 53,200 66,400
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) DALI dimming 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
DMX dimming 17.8 17.8 17.8 17.8 17.8 17.8 17.8 17.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.1 780 780 780 780 710 610 530 660
30 3.2 87 87 87 87 78 67 59 73
50 5.4 31 31 31 31 28 24 21 26
100 11 7.8 7.8 7.8 7.8 7.1 6.1 5.3 6.6
250 27 1.3 1.3 1.3 1.3 1.1 0.97 0.85 1.0
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/07 57/X/07 50/X/07 40/X/07 30/X/07 27/X/07 22/X/07 YE/N/07
Center luminous intensity (cd) 60,600 60,600 60,600 60,600 54,500 46,300 40,500 50,500
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) DALI dimming 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
DMX dimming 17.8 17.8 17.8 17.8 17.8 17.8 17.8 17.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.3 600 600 600 600 540 460 400 500
30 3.8 66 66 66 66 60 51 45 56
50 6.3 24 24 24 24 21 18 16 20
100 13 6.0 6.0 6.0 6.0 5.4 4.6 4.0 5.0
250 31 0.96 0.96 0.96 0.96 0.86 0.74 0.64 0.80
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/08 57/X/08 50/X/08 40/X/08 30/X/08 27/X/08 22/X/08 YE/N/08
Center luminous intensity (cd) 45,500 45,500 45,500 45,500 40,900 34,700 30,400 37,900
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) DALI dimming 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
DMX dimming 17.8 17.8 17.8 17.8 17.8 17.8 17.8 17.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.4 450 450 450 450 410 350 300 380
30 4.3 50 50 50 50 45 38 34 42
50 7.2 18 18 18 18 16 14 12 15
100 14 4.5 4.5 4.5 4.5 4.1 3.5 3.0 3.8
250 36 0.72 0.72 0.72 0.72 0.65 0.55 0.48 0.60
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/09 57/X/09 50/X/09 40/X/09 30/X/09 27/X/09 22/X/09 YE/N/09
Center luminous intensity (cd) 37,700 37,700 37,700 37,700 33,900 28,800 25,200 31,400
Rated Luminous Flux（lm） 757 757 757 757 681 622 544 710
Power Consumption(W) DALI dimming 16.9 16.9 16.9 16.9 16.9 16.9 16.9 16.9
DMX dimming 17.8 17.8 17.8 17.8 17.8 17.8 17.8 17.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.5 370 370 370 370 330 290 250 310
30 4.5 41 41 41 41 37 32 28 35
50 7.5 15 15 15 15 13 11 10 13
100 15 3.7 3.7 3.7 3.7 3.3 2.9 2.5 3.1
250 38 0.59 0.59 0.59 0.59 0.53 0.46 0.40 0.50

Medium-angle type

LLF0111A Product name / MWWD028 Part No. / / Light Source
Code/
Color Rendering / Light
Distribution Angle / S a / BK b / c / C d / CE e / 1 f
  • The product names in the following specification tables refer only to the Light Source Code, Color Rendering and light distribution angle.
  • a:Installed type [S] = Standard installation
  • b:Body color [BK] = Charcoal grey
  • c:Control [ C ] = DALI dimming (Curve: Log)
    Control [ F ] = DALI dimming (Curve: Linear)
    Control [ D ] = DMX dimming (Curve: Log)
    Control [ G ] = DMX dimming (Curve: Linear)
  • d:Painting specification [C] =
    Heavy-duty salt resistance
  • e:Standard [CE] = CE/PSE
    Standard [TS] = TIS
    Standard[UL]=UL/cUL
    ※Medium-angle type 2200K conforms only to PSE.
  • f:Ver. [1] = Version 1

1/2 Beam angle

Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/10 57/X/10 50/X/10 40/X/10 30/X/10 27/X/10 22/X/10 YE/N/10
Center luminous intensity (cd) 91,800 91,800 91,800 91,800 76,500 76,500 61,200 84,200
Rated Luminous Flux（lm） 2,350 2,350 2,350 2,350 1,960 1,960 1,570 2,160
Power Consumption(W) DALI dimming 28.7 28.7 28.7 28.7 28.7 28.7 28.7 28.7
DMX dimming 29.8 29.8 29.8 29.8 29.8 29.8 29.8 29.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 1.6 920 920 920 920 770 770 610 840
30 4.7 100 100 100 100 85 85 68 94
50 7.9 37 37 37 37 31 31 24 34
100 16 9.2 9.2 9.2 9.2 7.7 7.7 6.1 8.4
250 39 1.5 1.5 1.5 1.5 1.2 1.2 0.98 1.3
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/20 57/X/20 50/X/20 40/X/20 30/X/20 27/X/20 22/X/20 YE/N/20
Center luminous intensity (cd) 33,700 33,700 33,700 33,700 28,100 28,100 22,500 30,900
Rated Luminous Flux（lm） 2,350 2,350 2,350 2,350 1,960 1,960 1,570 2,160
Power Consumption(W) DALI dimming 28.7 28.7 28.7 28.7 28.7 28.7 28.7 28.7
DMX dimming 29.8 29.8 29.8 29.8 29.8 29.8 29.8 29.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 3.2 340 340 340 340 280 280 230 310
30 9.5 37 37 37 37 31 31 25 34
50 16 13 13 13 13 11 11 9.0 12
100 32 3.4 3.4 3.4 3.4 2.8 2.8 2.3 3.1
250 79 0.54 0.54 0.54 0.54 0.45 0.45 0.36 0.49
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/30 57/X/30 50/X/30 40/X/30 30/X/30 27/X/30 22/X/30 YE/N/30
Center luminous intensity (cd) 14,600 14,600 14,600 14,600 12,200 12,200 9,760 13,400
Rated Luminous Flux（lm） 2,350 2,350 2,350 2,350 1,960 1,960 1,570 2,160
Power Consumption(W) DALI dimming 28.7 28.7 28.7 28.7 28.7 28.7 28.7 28.7
DMX dimming 29.8 29.8 29.8 29.8 29.8 29.8 29.8 29.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 4.8 150 150 150 150 120 120 98 130
30 15 16 16 16 16 14 14 11 15
50 24 5.8 5.8 5.8 5.8 4.9 4.9 3.9 5.4
100 48 1.5 1.5 1.5 1.5 1.2 1.2 0.98 1.3
250 121 0.23 0.23 0.23 0.23 0.20 0.20 0.16 0.21
Color variation 6500K 5700K 5000K 4000K 3000K 2700K 2200K GOLD
Part No. 65/X/50 57/X/50 50/X/50 40/X/50 30/X/50 27/X/50 22/X/50 YE/N/50
Center luminous intensity (cd) 5,260 5,260 5,260 5,260 4,380 4,380 3,510 4,820
Rated Luminous Flux（lm） 2,350 2,350 2,350 2,350 1,960 1,960 1,570 2,160
Power Consumption(W) DALI dimming 28.7 28.7 28.7 28.7 28.7 28.7 28.7 28.7
DMX dimming 29.8 29.8 29.8 29.8 29.8 29.8 29.8 29.8
Illumination range Center Beam Illuminance (lx)
D(m) Φ(m)
10 10 53 53 53 53 44 44 35 48
30 31 5.8 5.8 5.8 5.8 4.9 4.9 3.9 5.4
50 51 2.1 2.1 2.1 2.1 1.8 1.8 1.4 1.9
100 102 0.53 0.53 0.53 0.53 0.44 0.44 0.35 0.48
250 256 0.084 0.084 0.084 0.084 0.070 0.070 0.056 0.077
  • Body: Aluminum die casting
    Front cover: Polycarbonate
    Secondary lens: Acrylic
    Rated Voltage: AC100～240V
    Ambient temperature:
    -20-50 °C (Narrow angle ON/OFF type)
    -25-50 °C (Narrow angle Dimmable type / Medium angle)
    Waterproof and dustproof: IP66
    Light source life: 50,000 hours (lumen maintenance factor 70%)
    Power supply: Built in
    Weight: Narrow-angle type (1.5-9°) 3.5 kg
    [Dimmable type 3.7 kg]
    Medium-angle type (10-50°) 4.2 kg
    [Dimmable type 4.3 kg]
  • ON/OFF type Rated Luminous Flux Power Consumption
    Ultra narrow-angle (1.5°) 565 lm 16.0 W
    Narrow-angle (2.5 - 9°) 544-757 lm 16.9 W
    Medium-angle (10 - 50°) 1,570-2,350 lm 28.3 W
    Dimmable type Rated Luminous Flux Power Consumption
    Narrow-angle (2.5 - 9°) 544-757 lm 16.9-17.8 W
    Medium-angle (10 - 50°) 1,570-2,350 lm 28.7-29.8 W
    • Power consumption is at AC 100V

You can calculate the illuminance and number of fixtures required here.

Start the illuminance calculation

Downloading Materials

Disclaimer

  • Stanley Electric Co., Ltd. shall not be liable for any disadvantage, damage, liability for any cause of action, or any other damage or loss arising out of the use of the downloaded data, or inability or inability to use the downloaded data.
  • The Data is provided to the User on an “AS IS” basis, and Stanley Electric Co.
  • This data is provided “as is” without warranty of any kind, either express or implied.
    Reproduction or duplication of the Data, in whole or in part, is strictly prohibited.
  • Stanley Electric Co. Ltd. reserves the right to change the data without notice.
  • Only representative models are shown in the product diagrams. For product diagrams of requested models, please contact us via the contact page.
Lighting Fixtures List
Inquiry Form
(Product Information)
