• Outdoor Special Purpose Lighting
  • LEDSHIGHMAST
  • Outdoor LED Floodlight

LLF0059A

  • White
  • Warm White
  • Incandescent
Downloading Materials
  • Waterproof IP66
  • Noise Resistance
  • Heavy Salt Resistance
  • Vibration Resistance 2G

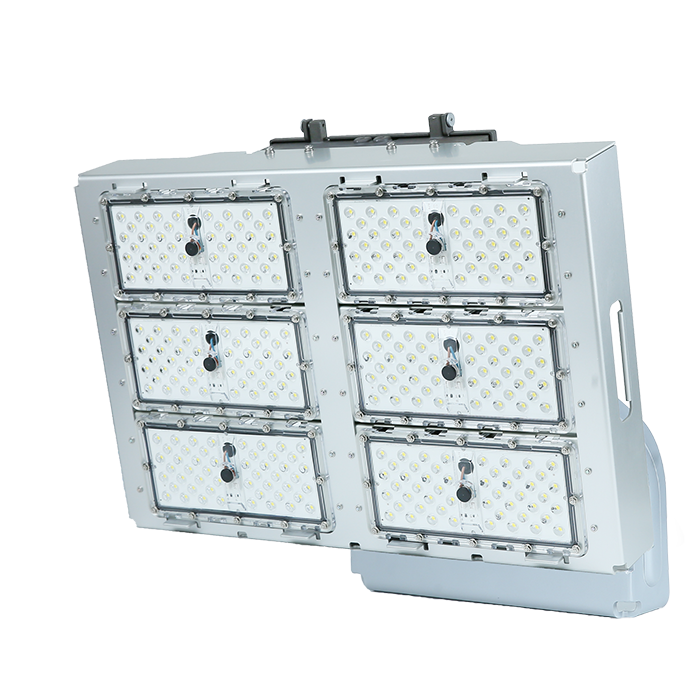

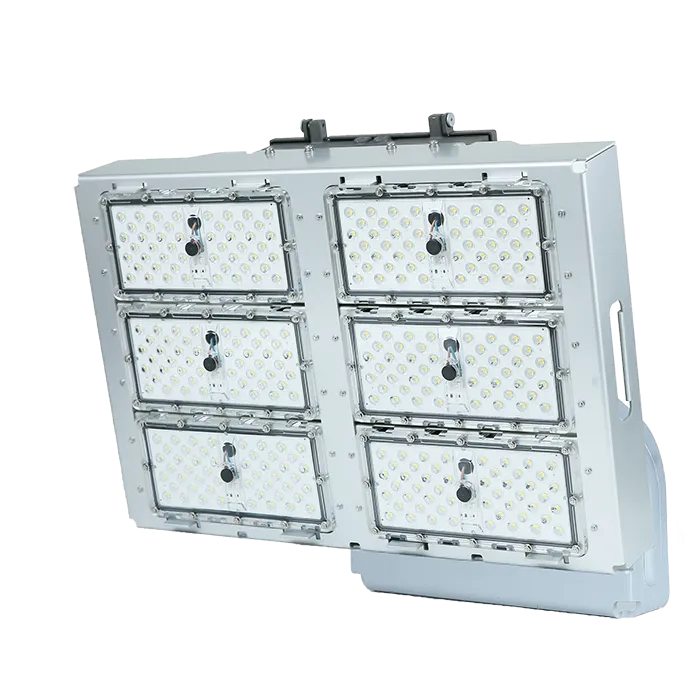

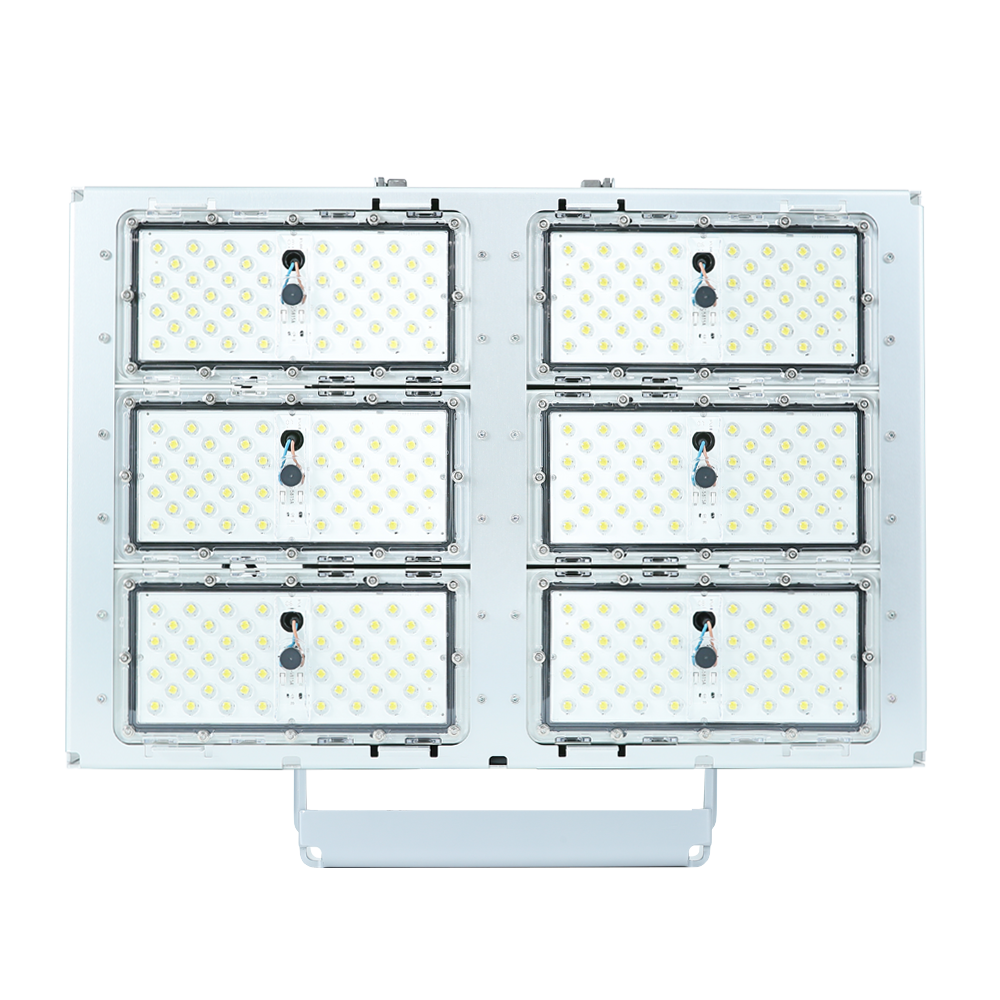

High luminous flux LED
floodlight that meets strict environmental standards at ports and harbors

With dust and water resistance that meets IP66 rating standards, this lighting can be used in coastal areas, which require tolerance to heavy salt. This product delivers a sufficient quantity of light to irradiate a vast area, and we provide wide and narrow light distributions.

Outline dimensions

Features

  • Built to withstandharsh environments

    We provide LED floodlights with high quality and reliability, which passed endurance tests for harsh environments.
    Excellent durability
  • Conservation of energy & environment

    The higher efficiency enables energy saving and thus contributes to reduction of greenhouse gases.

LEDSHIGHMAST

LLF0059A

Features

Part No. LLF0059A/145*/06/J/I/D/N Material Body: aluminum sheet-metal
Translucent Cover: polycarbonate
Color
Temperature
5700K(White) Power Consumption 460W(at 220V)
Rated Voltage AC100~240V Lightning Surge
Protection
Pressure
Resistance
15kV(Common mode)
Light Distribution
Angle
1/2Beam Angle
Narrow(*2)θ15° / Middle(*1)θ32° / Wide(*0)θ46° Light Distribution
Angle
1/10Beam Angle
Narrow(*2)θ26° / Middle(*1)θ50° / Wide(*0)θ100°
Rated Luminous
Flux(at 220V)
63,746 lm Intrinsic energy
consumption
efficiency
139lm/W
Color Rendering
Property
Ra72 Ambient
Temperature
-20~40℃
Weight 18.8kg Water and Dust
Resistance
IP66
Light Source Lifetime 60,000h (lumen maintenance factor70%) Wind Resistance 70m/s

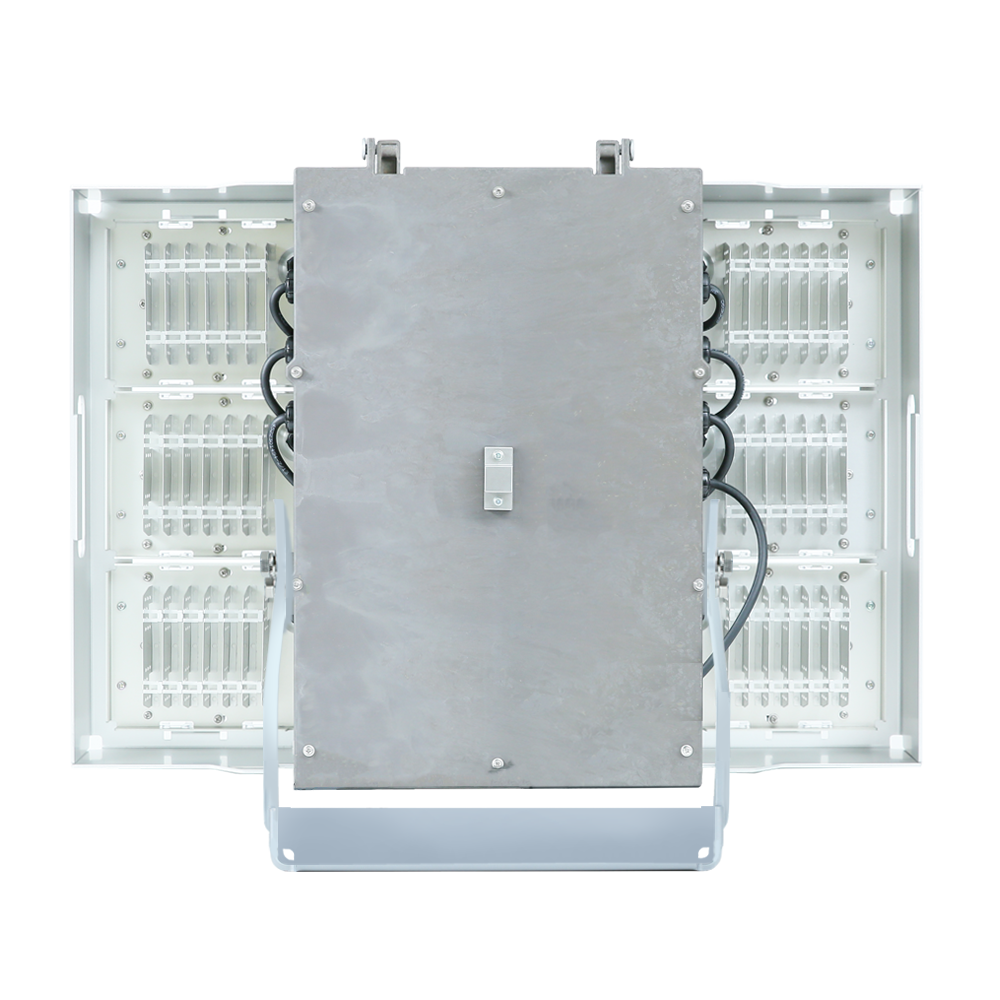

Power Supply Built In
Part No. LLF0059A/145*/06/E/I/D/N Material Body: aluminum sheet-metal
Translucent Cover: polycarbonate
Color
Temperature
4000K(Warm White) Power Consumption 460W(at 220V)
Rated Voltage AC100~240V Lightning Surge
Protection
Pressure
Resistance
15kV(Common mode)
Light Distribution
Angle
1/2Beam Angle
Narrow(*5)θ15° / Middle(*4)θ32° / Wide(*3)θ46° Light Distribution
Angle
1/10Beam Angle
Narrow(*5)θ26° / Middle(*4)θ50° / Wide(*3)θ100°
Rated Luminous
Flux(at 220V)
62,130 lm Intrinsic energy
consumption
efficiency
135lm/W
Color Rendering
Property
Ra72 Ambient
Temperature
-20~40℃
Weight 18.8kg Water and Dust
Resistance
IP66
Light Source Lifetime 60,000h (lumen maintenance factor70%) Wind Resistance 70m/s
Power Supply Built In
Part No. LLF0059A/145*/06/C/I/D/N Material Body: aluminum sheet-metal
Translucent Cover: polycarbonate
Color
Temperature
3000K(Light Bulb Color) Power Consumption 460W(at 220V)
Rated Voltage AC100~240V Lightning Surge
Protection
Pressure
Resistance
15kV(Common mode)
Light Distribution
Angle
1/2Beam Angle
Narrow(*8)θ15° / Middle(*7)θ32° / Wide(*6)θ46° Light Distribution
Angle
1/10Beam Angle
Narrow(*8)θ26° / Middle(*7)θ50° / Wide(*6)θ100°
Rated Luminous
Flux(at 220V)
59,147 lm Intrinsic energy
consumption
efficiency
129lm/W
Color Rendering
Property
Ra72 Ambient
Temperature
-20~40℃
Weight 18.8kg Water and Dust
Resistance
IP66
Light Source Lifetime 60,000h (lumen maintenance factor70%) Wind Resistance 70m/s
Power Supply Built In

You can calculate the illuminance and number of fixtures required here.

Start the illuminance calculation

Disclaimer

  • Stanley Electric Co., Ltd. shall not be liable for any disadvantage, damage, liability for any cause of action, or any other damage or loss arising out of the use of the downloaded data, or inability or inability to use the downloaded data.
  • The Data is provided to the User on an “AS IS” basis, and Stanley Electric Co.
  • This data is provided “as is” without warranty of any kind, either express or implied.
    Reproduction or duplication of the Data, in whole or in part, is strictly prohibited.
  • Stanley Electric Co. Ltd. reserves the right to change the data without notice.
  • Only representative models are shown in the product diagrams. For product diagrams of requested models, please contact us via the contact page.
