- LED High Bay Lighting
LLF0058A
Excellent vibration resistance and a lightweight, thin body, making it ideal for ensuring
brightness in factories, warehouses, etc.

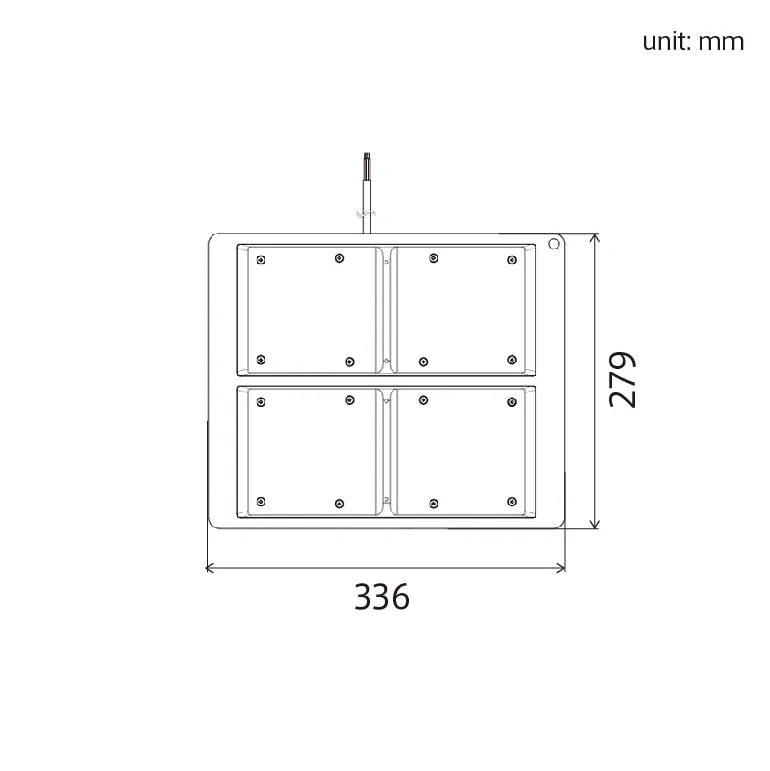

The housing structure uses aluminum yet is strong, making the product lightweight and giving it a unified color.Outline dimensions
Features
-
Daring design
The body is thinner because we made the light-emitting part thin by not using the conventional radiation fin. -
Lightweight
Helps reducing the man-hour for installation. -
Angle adjustment
The angle of light can easily be adjusted after installation, because the range of motion of this fixture is 35° each to right and left. -
Wide range of input voltage
Voltage for lighting can be in the range of AC90-305V; usable in regions with unstable voltage.
LEDSHIGHBAY
LLF0058A
Features
| Part No. | LLF0058A/1400/01/G/IN/A | Color Temp. | 5000K |
|---|---|---|---|
| Power Consumption (at AC220V) |
56W | Rated Luminous Flux |
8,420lm |
| Intrinsic energy consumption efficiency (at AC220V) |
150lm/w | Weight | 2.2kg |
| Material | Body: aluminum sheet-metal | Color Rendering Property |
Ra70 |
| Rated Voltage | AC100~240V | Ambient Temperature |
-20~45℃ |
| Water and Dust Resistance |
IP20 | 1/2Beam Angle | 120° |
| Light Source Lifetime | 60,000h (lumen maintenance factor70%) |
| Part No. | LLF0058A/1400/02/G/IN/A | Color Temp. | 5000K |
|---|---|---|---|
| Power Consumption (at AC220V) |
111W | Rated Luminous Flux |
16,850lm |
| Intrinsic energy consumption efficiency: (at AC220V) |
152lm/w | Weight | 2.9kg |
| Material | Body: aluminum sheet-metal | Color Rendering Property: |
Ra70 |
| Rated Voltage | AC100~240V | Ambient Temperature |
-20~45℃ |
| Water and Dust Resistance |
IP20 | 1/2Beam Angle | 120° |
| Light Source Lifetime | 60,000h (lumen maintenance factor70%) |
| Part No. | LLF0058A/1400/03/G/IN/A | Color Temp. | 5000K |
|---|---|---|---|
| Power Consumption (at AC220V) |
163W | Rated Luminous Flux |
25,300lm |
| Intrinsic energy consumption efficiency: (at AC220V) |
155lm/w | Weight | 4.2kg |
| Material | Body: aluminum sheet-metal | Color Rendering Property: |
Ra70 |
| Rated Voltage | AC100~240V | Ambient Temperature |
-20~45℃ |
| Water and Dust Resistance |
IP20 | 1/2Beam Angle | 120° |
| Light Source Lifetime | 60,000h (lumen maintenance factor70%) |
| Part No. | LLF0058A/1400/04/G/IN/A | Color Temp. | 5000K |
|---|---|---|---|
| Power Consumption (at AC220V) |
215W | Rated Luminous Flux |
33,700lm |
| Intrinsic energy consumption efficiency: (at AC220V) |
157lm/w | Weight | 5.7kg |
| Material | Body: aluminum sheet-metal | Color Rendering Property: |
Ra70 |
| Rated Voltage | AC100~240V | Ambient Temperature |
-20~45℃ |
| Water and Dust Resistance |
IP20 | 1/2Beam Angle | 120° |
| Light Source Lifetime | 60,000h (lumen maintenance factor70%) |
| Part No. | LLF0058A/1400/01/C/IN/A | Color Temp. | 3000K |
|---|---|---|---|
| Power Consumption (at AC220V) |
56W | Rated Luminous Flux |
8,000lm |
| Intrinsic energy consumption efficiency: (at AC220V) |
143lm/w | Weight | 2.2kg |
| Material | Body: aluminum sheet-metal | Color Rendering Property: |
Ra70 |
| Rated Voltage | AC100~240V | Ambient Temperature |
-20~45℃ |
| Water and Dust Resistance |
IP20 | 1/2Beam Angle | 120° |
| Light Source Lifetime | 60,000h (lumen maintenance factor70%) |
| Part No. | LLF0058A/1400/02/C/IN/A | Color Temp. | 3000K |
|---|---|---|---|
| Power Consumption (at AC220V) |
111W | Rated Luminous Flux |
16,000lm |
| Intrinsic energy consumption efficiency: (at AC220V) |
144lm/w | Weight | 2.9kg |
| Material | Body: aluminum sheet-metal | Color Rendering Property: |
Ra70 |
| Rated Voltage | AC100~240V | Ambient Temperature |
-20~45℃ |
| Water and Dust Resistance |
IP20 | 1/2Beam Angle | 120° |
| Light Source Lifetime | 60,000h (lumen maintenance factor70%) |
| Part No. | LLF0058A/1400/03/C/IN/A | Color Temp. | 3000K |
|---|---|---|---|
| Power Consumption (at AC220V) |
163W | Rated Luminous Flux |
24,000lm |
| Intrinsic energy consumption efficiency: (at AC220V) |
147lm/w | Weight | 4.2kg |
| Material | Body: aluminum sheet-metal | Color Rendering Property: |
Ra70 |
| Rated Voltage | AC100~240V | Ambient Temperature |
-20~45℃ |
| Water and Dust Resistance |
IP20 | 1/2Beam Angle | 120° |
| Light Source Lifetime | 60,000h (lumen maintenance factor70%) |
| Part No. | LLF0058A/1400/04/C/IN/A | Color Temp. | 3000K |
|---|---|---|---|
| Power Consumption (at AC220V) |
215W | Rated Luminous Flux |
32,000lm |
| Intrinsic energy consumption efficiency: (at AC220V) |
148lm/w | Weight | 5.7kg |
| Material | Body: aluminum sheet-metal | Color Rendering Property: |
Ra70 |
| Rated Voltage | AC100~240V | Ambient Temperature |
-20~45℃ |
| Water and Dust Resistance |
IP20 | 1/2Beam Angle | 120° |
| Light Source Lifetime | 60,000h (lumen maintenance factor70%) |
You can calculate the illuminance and number of fixtures required here.
