LLF0016A
Thin body to match
the surroundingsLED road lighting that can withstand harsh environments

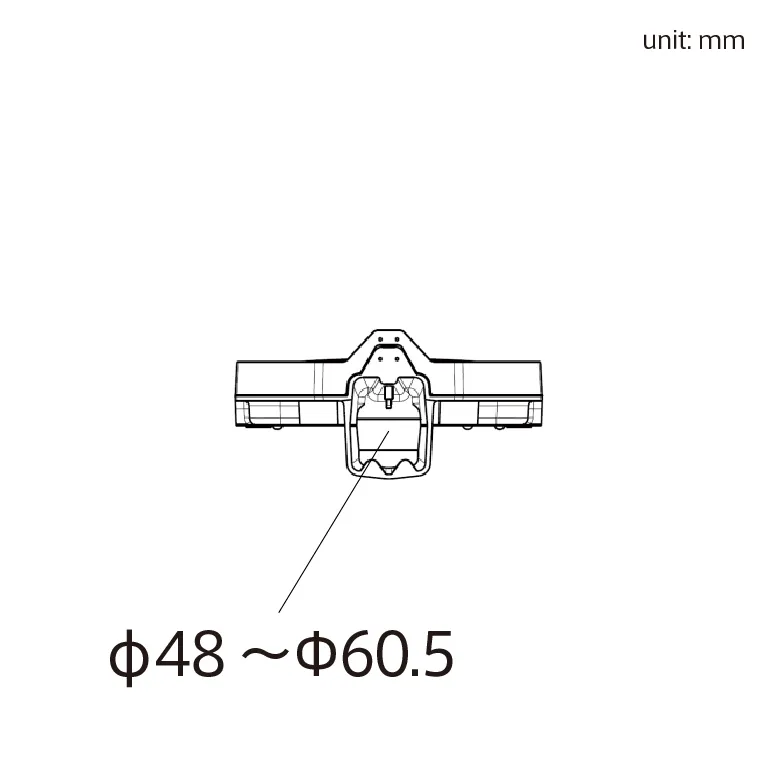

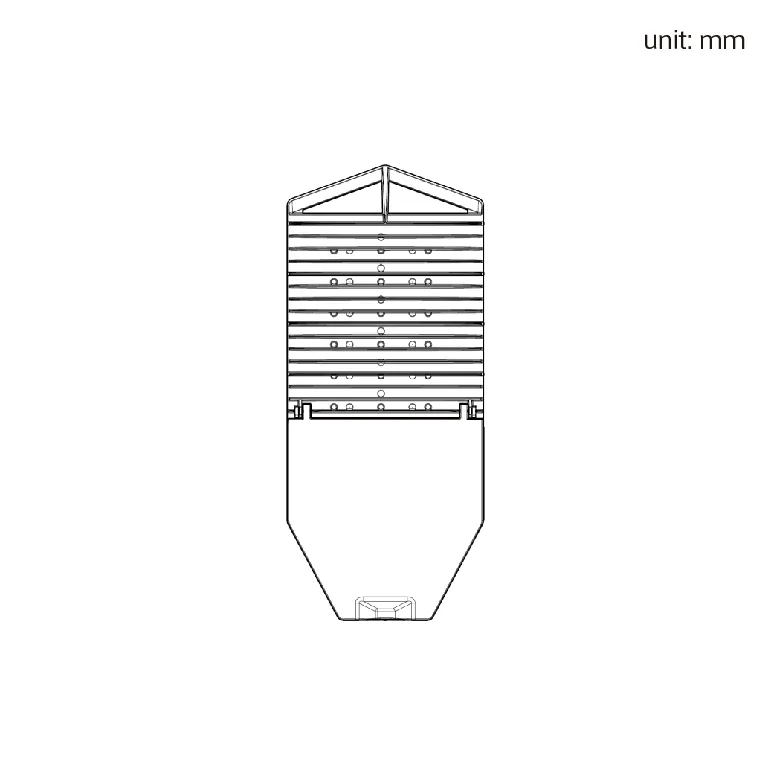

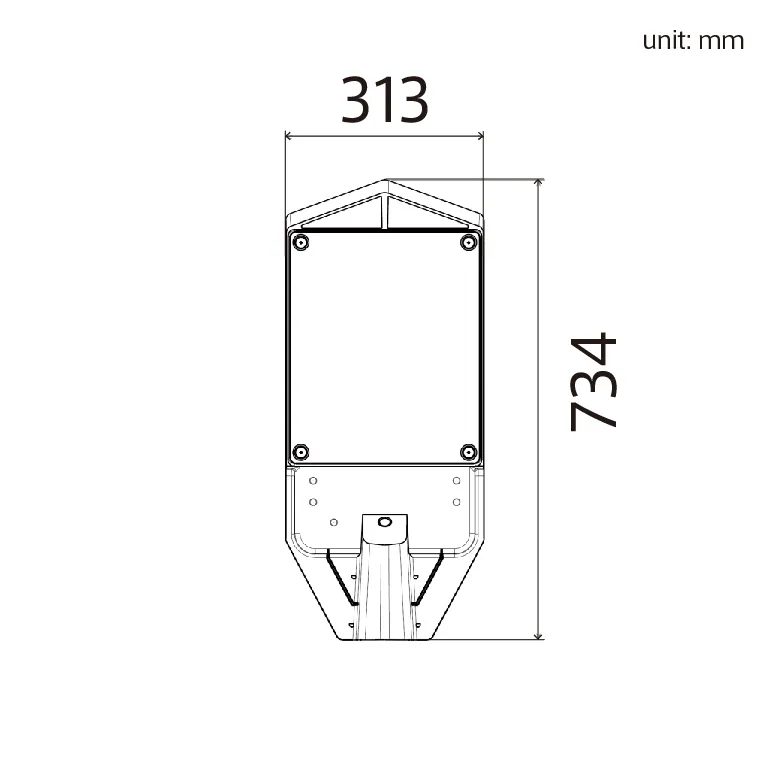

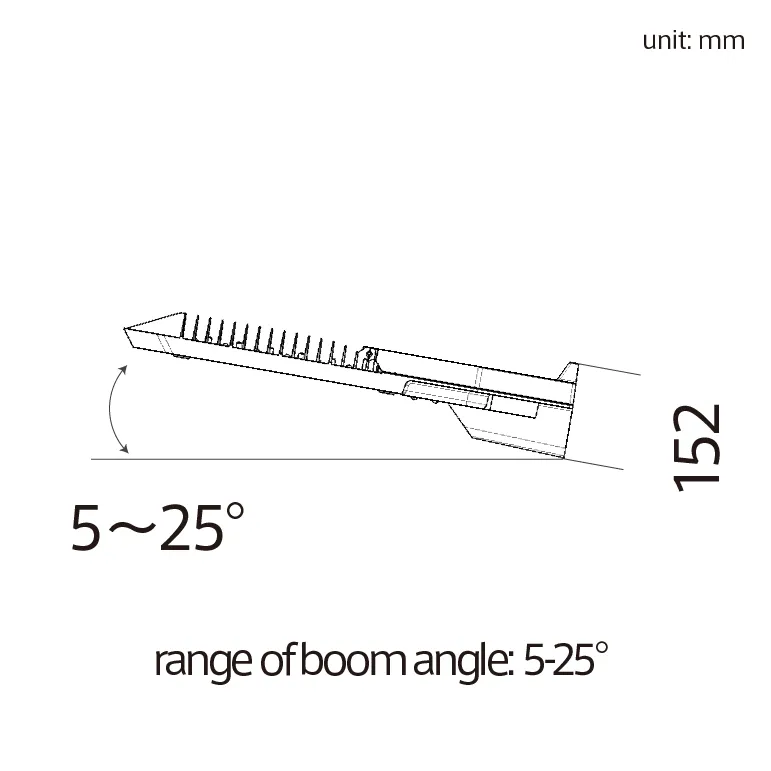

With a lighting surge tolerance as high as 20kV, this product delivers peace of mind with its long service life under harsh conditions. The risk of insects getting inside the product is very low, because it is designed with high airtightness (IP66), including parts other than the light source. Combination of 6 output types and 3 light distribution patterns meets various needs. Installation for this lighting fixture is simple because opening / closing of the cover does not require a tool.Outline dimensions
Features
-
Design that suits urban areas
Implemented optimal control of light distribution with a slim body that matches a variety of scenes. -
High tolerance to UV
Tempered glass is used for the outer lens of the light-emitting part, and the optical lenses are made of acryl. -
High tolerance to heat
Tolerates ambient temperature up to 50℃. -
Wide range of input voltage
With an allowable input voltage range of AC90-305V, it can operate even in areas with unstable voltage.
*Performance in the voltage range outside the rated voltage is not guaranteed. -
Wide variety of lenses
Uniform light distribution on road surfaces is provided by selecting the appropriate lens from 3 differnt options. -
Maintenance & upgrade
In addition to the power source part, we unitized the LED part so it can be replaced or upgraded as a unit.
LEDSROAD
LED Road Lighting LLF0016A
Features
| Part No. | LLF0016A/LEN1/56/E/IN/A LLF0016A/LEN2/56/E/IN/A LLF0016A/LEN3/56/E/IN/A |
Power Consumption (at 220V) | 117W |
|---|---|---|---|
| Rated Luminous Flux |
15,000 lm | Intrinsic energy consumption efficiency |
129 lm |
| Class of the Lighting |
ME3~ME6 | Type of Road | general |
| Material | Body: aluminum die-cast, Outer Cover: tempered glass | Color Temperature |
4000K |
| Water and Dust Resistance |
IP66 | Life of Light Source | 60,000h (lumen maintenance factor70%) |
| Shock Resistance | IK08 | Shock Resistance | 2G |
| Ambient Temperature |
-20～50℃ | Wind Resistance | 60m/s |
| Input Voltage | rated voltage AC100~240V(AC90~305V) | Lightning Surge Protection Pressure Resistance |
20kV(Common mode) |
| Part No. | LLF0016A/LEN1/64/E/IN/A LLF0016A/LEN2/64/E/IN/A LLF0016A/LEN3/64/E/IN/A |
Power Consumption (at 220V) | 134W |
|---|---|---|---|
| Rated Luminous Flux |
17,200 lm | Intrinsic energy consumption efficiency: |
129 lm |
| Class of the Lighting |
ME2~ME6 | Type of Road | general |
| Material | Body: aluminum die-cast, Outer Cover: tempered glass | Color Temperature |
4000K |
| Water and Dust Resistance |
IP66 | Life of Light Source | 60,000h (lumen maintenance factor70%) |
| Shock Resistance | IK08 | Shock Resistance | 2G |
| Ambient Temperature |
-20～50℃ | Wind Resistance | 60m/s |
| Input Voltage | rated voltage AC100~240V(AC90~305V) | Lightning Surge Protection Pressure Resistance |
20kV(Common mode) |
| Part No. | LLF0016A/LEN1/72/E/IN/A LLF0016A/LEN2/72/E/IN/A LLF0016A/LEN3/72/E/IN/A |
Power Consumption (at 220V) | 150W |
|---|---|---|---|
| Rated Luminous Flux |
19,400 lm | Intrinsic energy consumption efficiency: |
129 lm |
| Class of the Lighting |
ME1~ME6 | Type of Road | general/expressway |
| Material | Body: aluminum die-cast, Outer Cover: tempered glass | Color Temperature |
4000K |
| Water and Dust Resistance |
IP66 | Life of Light Source | 60,000h (lumen maintenance factor70%) |
| Shock Resistance | IK08 | Shock Resistance | 2G |
| Ambient Temperature |
-20～50℃ | Wind Resistance | 60m/s |
| Input Voltage | rated voltage AC100~240V(AC90~305V) | Lightning Surge Protection Pressure Resistance |
20kV(Common mode) |
| Part No. | LLF0016A/LEN1/76/E/IN/A LLF0016A/LEN2/76/E/IN/A LLF0016A/LEN3/76/E/IN/A |
Power Consumption (at 220V) | 159W |
|---|---|---|---|
| Rated Luminous Flux |
20,400 lm | Intrinsic energy consumption efficiency: |
129 lm |
| Class of the Lighting |
ME1~ME6 | Type of Road | general/expressway |
| Material | Body: aluminum die-cast, Outer Cover: tempered glass | Color Temperature |
4000K |
| Water and Dust Resistance |
IP66 | Life of Light Source | 60,000h (lumen maintenance factor70%) |
| Shock Resistance | IK08 | Shock Resistance | 2G |
| Ambient Temperature |
-20～50℃ | Wind Resistance | 60m/s |
| Input Voltage | rated voltage AC100~240V(AC90~305V) | Lightning Surge Protection Pressure Resistance |
20kV(Common mode) |
| Part No. | LLF0016A/LEN1/80/E/IN/A LLF0016A/LEN2/80/E/IN/A LLF0016A/LEN3/80/E/IN/A |
Power Consumption (at 220V) | 167W |
|---|---|---|---|
| Rated Luminous Flux |
21,500 lm | Intrinsic energy consumption efficiency: |
129 lm |
| Class of the Lighting |
ME1~ME6 | Type of Road | general/expressway |
| Material | Body: aluminum die-cast, Outer Cover: tempered glass | Color Temperature |
4000K |
| Water and Dust Resistance |
IP66 | Life of Light Source | 60,000h (lumen maintenance factor70%) |
| Shock Resistance | IK08 | Shock Resistance | 2G |
| Ambient Temperature |
-20～50℃ | Wind Resistance | 60m/s |
| Input Voltage | rated voltage AC100~240V(AC90~305V) | Lightning Surge Protection Pressure Resistance |
20kV(Common mode) |
| Part No. | LLF0016A/LEN1/96/E/IN/A LLF0016A/LEN2/96/E/IN/A LLF0016A/LEN3/96/E/IN/A |
Power Consumption (at 220V) | 202W |
|---|---|---|---|
| Rated Luminous Flux |
25,800 lm | Intrinsic energy consumption efficiency: |
129 lm |
| Class of the Lighting |
ME1~ME6 | Type of Road | expressway |
| Material | Body: aluminum die-cast, Outer Cover: tempered glass | Color Temperature |
4000K |
| Water and Dust Resistance |
IP66 | Life of Light Source | 60,000h (lumen maintenance factor70%) |
| Shock Resistance | IK08 | Shock Resistance | 2G |
| Ambient Temperature |
-20～50℃ | Wind Resistance | 60m/s |
| Input Voltage | rated voltage AC100~240V(AC90~305V) | Lightning Surge Protection Pressure Resistance |
20kV(Common mode) |

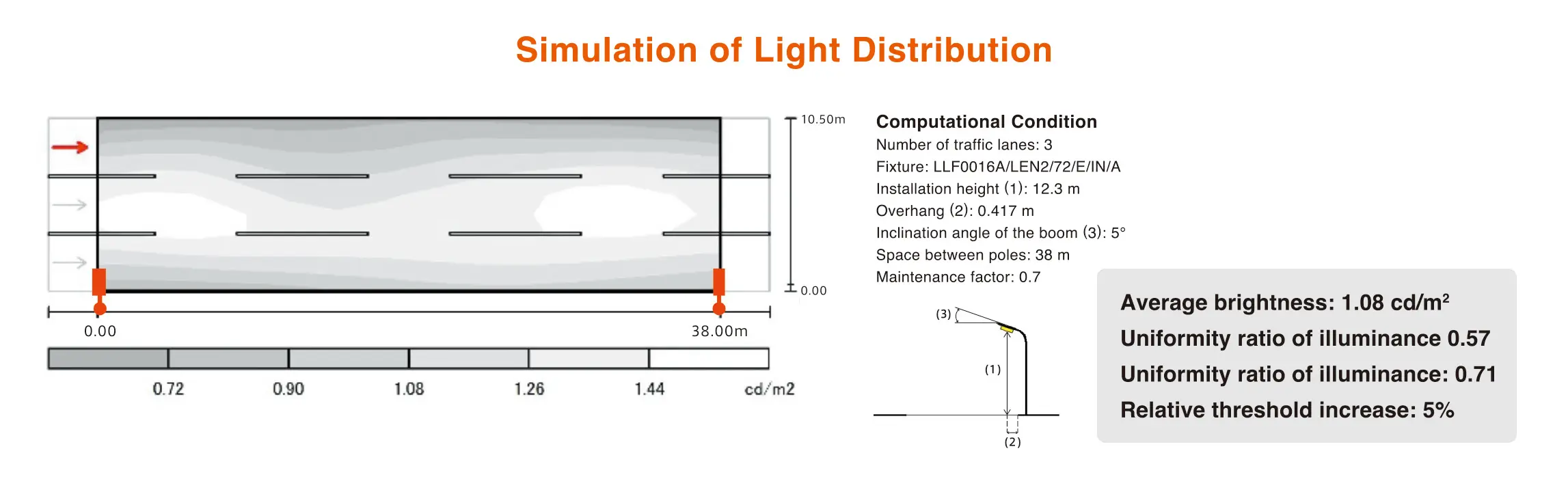

You can calculate the illuminance and number of fixtures required here.
