• Outdoor Special Purpose Lighting
  • LEDSHIGHMAST
  • Outdoor LED Floodlight

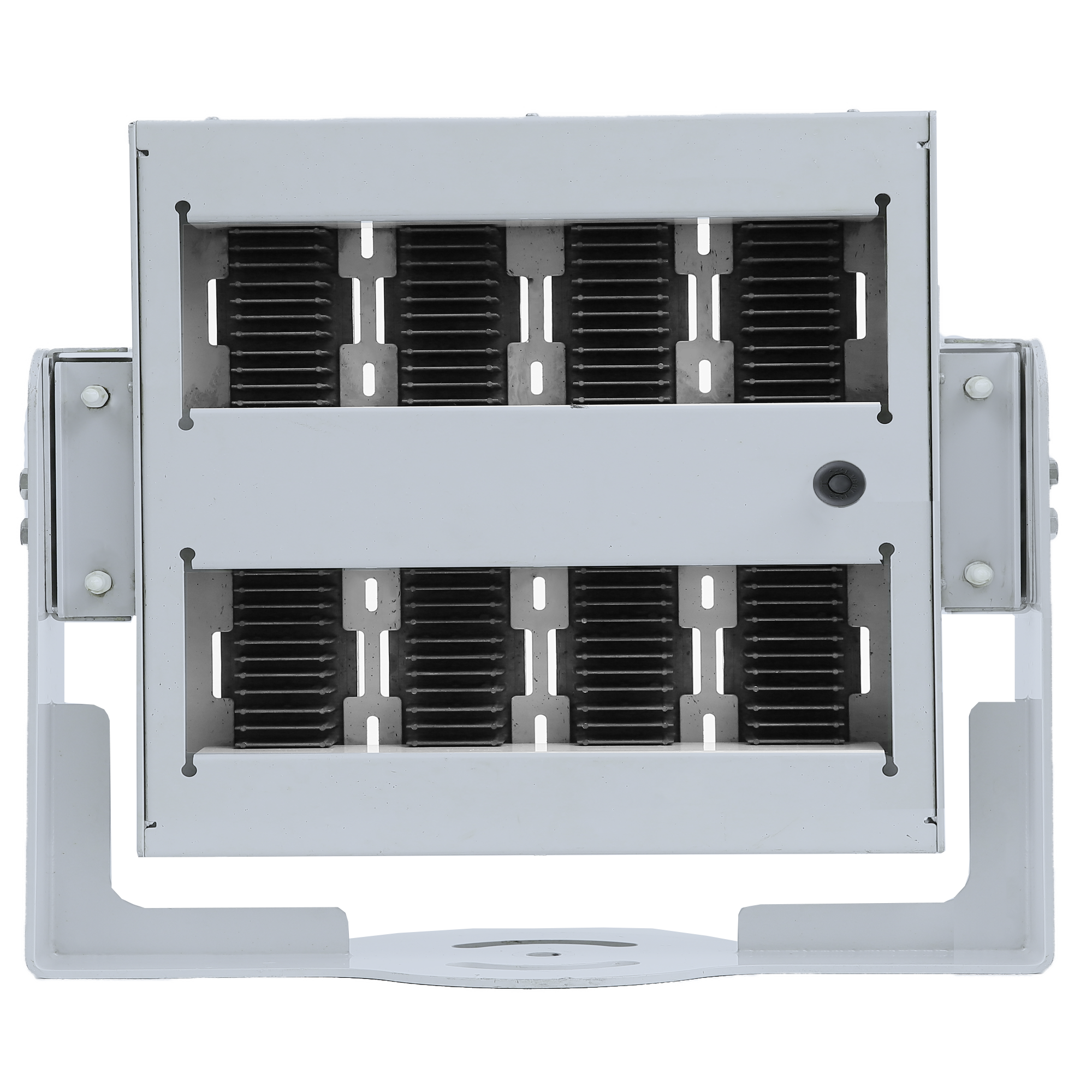

LLF0012A

  • White
  • Incandescent
Downloading Materials
  • Waterproof IP66
  • Noise Resistance
  • Heavy Salt Resistance
  • Vibration Resistance 5G

Excellent vibration resistance, ideal for
installation in port facilities

In order to enable its use in harsh environments,
we used as a base an existing lighting fixture with a track record of use in extremely salty areas.
We also analyzed what part of the fixture would be most affected by shocks
when used on a crane, and developed the arm with special quake-proof performance.

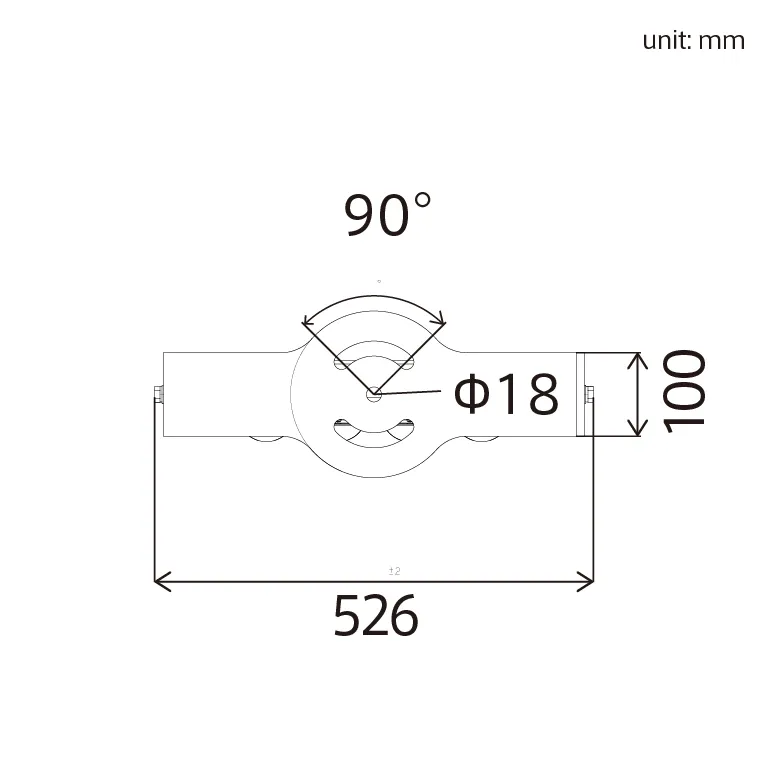

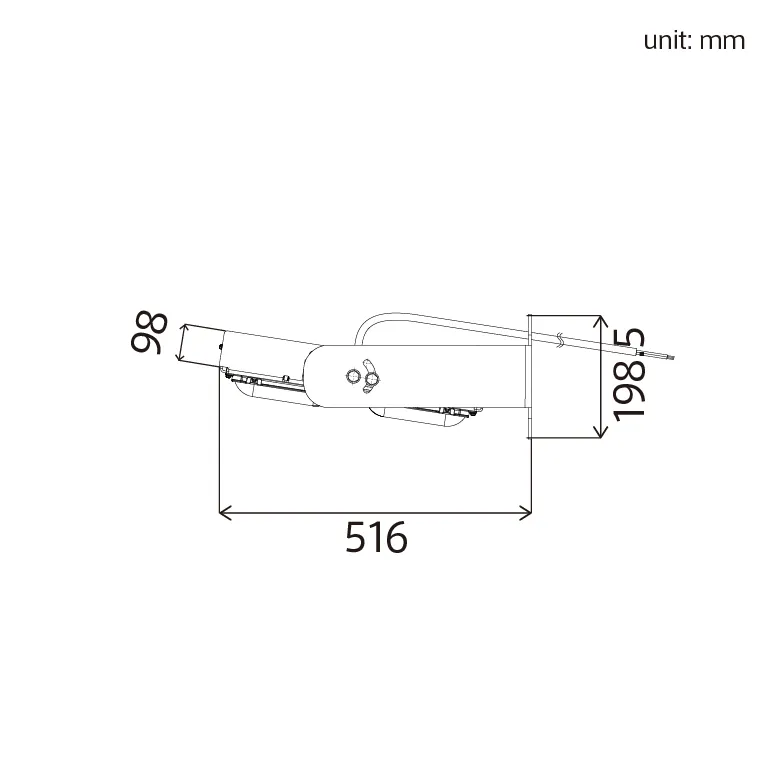

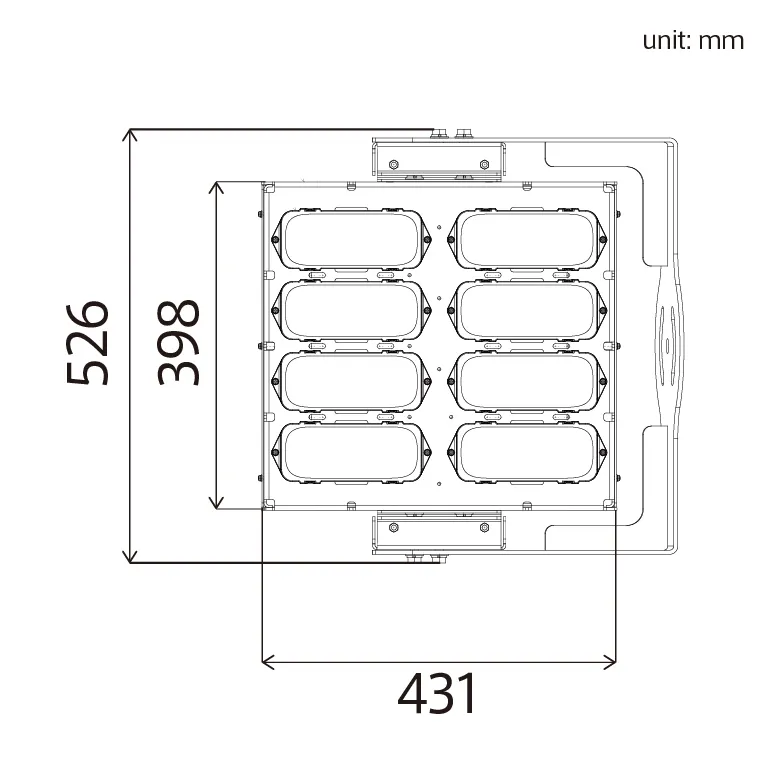

Outline dimensions

Features

  • Heavy Duty

    We provide high quality and reliable LED floodlights which have passed harsh environment endurance tests.
    Excellent durability

  • Quake Proof Structure

    The mounting arm features vibration-damping rubber, making it suitable for use in environments subject to vibration and impact, such as gantry cranes.

    Energy Efficient & Eco-friendly

    The higher efficiency enables energy saving and thus contributes to a reduction in greenhouse gases.

LEDSHIGHMAST

LLF0012A

Features

Part No. LLF0012A Color
Temperature		 3000K
Light Distribution
Angle		 Narrow angle
Middle angle
Wide angle		 Light Distribution
Angle (1/2 beam angle)		 Narrow 19°
Middle 22°
Wide 73°
Light Distribution
Angle (1/10 beam angle)		 Narrow 35°
Middle 58°
Wide 98°		 Rated Luminous
Flux (at 220 V)		 Narrow 35,200 lm
Middle 36,000 lm
Wide 36,800 lm
Intrinsic energy
consumption
efficiency		 Narrow 105 lm/W
Middle 107 lm/W
Wide 110 lm/W		 Material Body: aluminum sheet-metal
Translucent Cover: polycarbonate
Power Consumption 335W(at 220V) Rated Voltage AC100~240V
Lightning Surge
Protection
Pressure
Resistance		 15kV(Common mode) Color Rendering
Property		 Ra70
Ambient
Temperature		 -30~50℃ Weight 12.5kg
Water and Dust
Resistance		 IP66 Light Source Lifetime 60,000h (lumen maintenance factor70%)
Wind Resistance 60m/s Power Supply dedicated power source(sold separately)

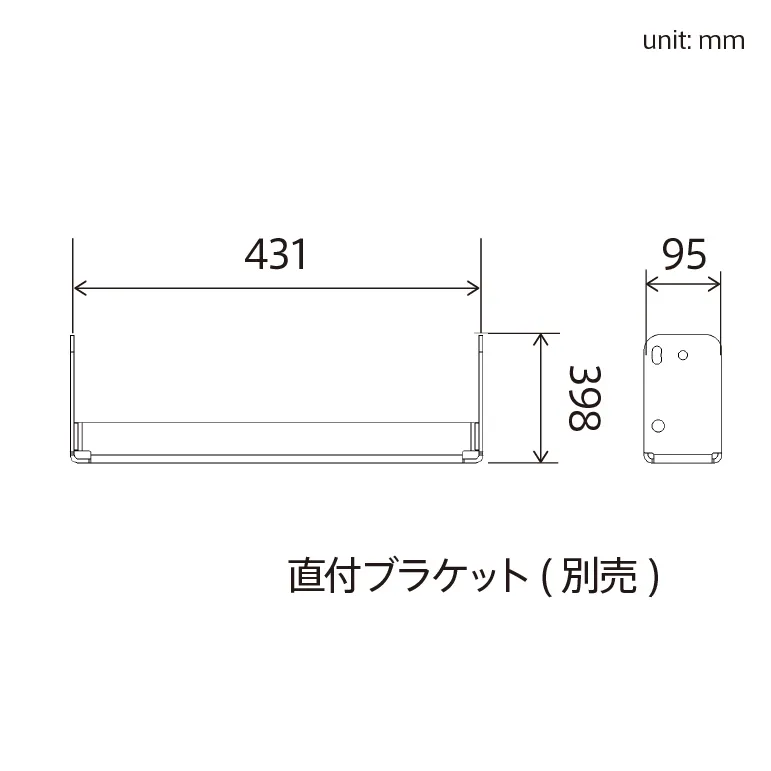

Mounting Arm Horizontal bracket type and direct mount
bracket type (Product name-2)
Part No. LLF0012A Color
Temperature		 5000K
Light Distribution
Angle		 Narrow angle
Middle angle
Wide angle		 Light Distribution
Angle (1/2 beam angle)		 Narrow 19°
Middle 22°
Wide 73°
Light Distribution
Angle (1/10 beam angle)		 Narrow 35°
Middle 58°
Wide 98°		 Rated Luminous
Flux (at 220 V)		 Narrow 38,400 lm
Middle 39,600 lm
Wide 40,800 lm
Intrinsic energy
consumption
efficiency		 Narrow 115 lm/W
Middle 118 lm/W
Wide 122 lm/W		 Material Body: aluminum sheet-metal
Translucent Cover: polycarbonate
Power Consumption 335W(at 220V) Rated Voltage AC100~240V
Lightning Surge
Protection
Pressure
Resistance		 15kV(Common mode) Color Rendering
Property:		 Ra70
Ambient
Temperature		 -30~50℃ Weight 12.5kg
Water and Dust
Resistance		 IP66 Light Source Lifetime 60,000h (lumen maintenance factor70%)
Wind Resistance 60m/s Power Supply dedicated power source(sold separately)
Mounting Arm Horizontal bracket type and direct mount
bracket type (Product name-2)

You can calculate the illuminance and number of fixtures required here.
