• Outdoor Special Purpose Lighting
  • LEDSHIGHMAST
  • Outdoor LED Floodlight

LLF0011A

  • White
Downloading Materials
  • Waterproof IP66
  • Noise Resistance
  • Heavy Salt Resistance
  • Vibration Resistance 2G

Excellent durability and high
luminous flux even under various
unfavorable conditions and in poor environments

Large quantity of light;
optimal for yard lightings (340W)

With dust and water resistance as high as IP66, this lighting can be used in coast areas, which require tolerance to heavy salt. We received NK Qualification of Nippon Kaiji Kyokai for conducting a test on this product for harbor environment. It has a sufficient quantity of light to irradiate a vast area, and we provide wide and narrow light distributions so that it can be selected according to the geographical features.

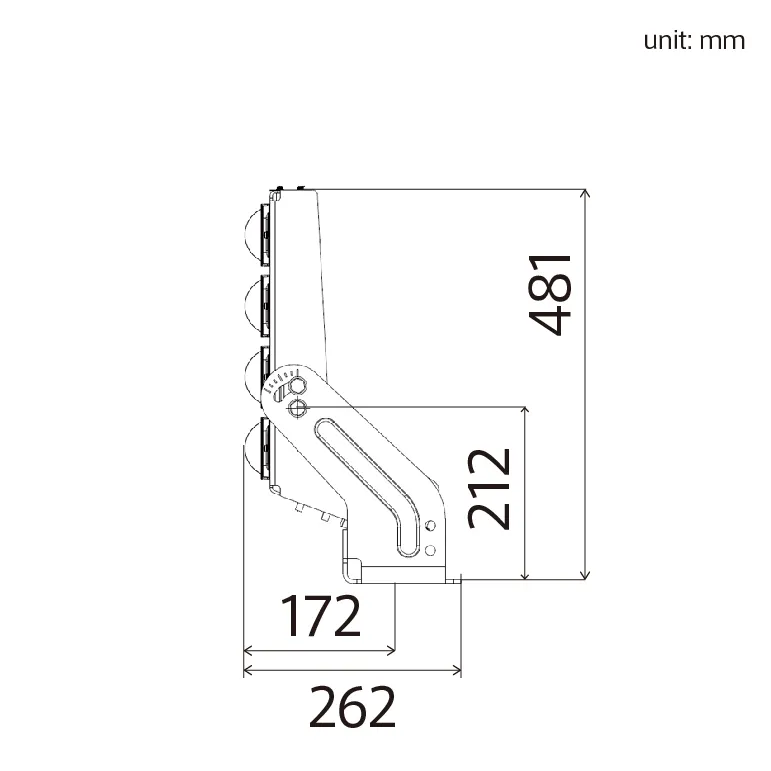

Outline dimensions

Features

  • Built to withstandharsh environments

    We provide LED floodlights with high quality and reliability, which passed endurance tests for harsh environments.
    Excellent durability

  • Conservation of energy & environment

    The higher efficiency enables energy saving and thus contributes to reduction of greenhouse gases.

Adoption Example

LEDSHIGHMAST

LLF0011A

Features

Part No. LLF0011A/FLOODLIGHT 3/ Material Body: aluminum sheet-metal
Translucent Cover: polycarbonate
Color
Temperature		 5000K Power Consumption 340W(at 220V)
Rated Voltage AC100~240V Lightning
Surge
Protection
Pressure
Resistance		 15kV(Common mode)
Light Distribution
Angle		 Narrow Light Distribution
Angle(1/2 beam angle)		 19°
Light Distribution
Angle(1/10 beam angle)		 35° Rated Luminous
Flux(at 220V)		 38,400lm
Intrinsic
energy
consumption
efficiency		 113lm/W Color Rendering
Property		 Ra70
Ambient
Temperature		 -20~40℃ Weight 13.5kg
Water and Dust
Resistance		 IP66 Light Source Lifetime 60,000h (lumen maintenance factor70%)
Wind Resistance 60m/s Power Supply Built In
Part No. LLF0011A/FLOODLIGHT 1 Material Body: aluminum sheet-metal
Translucent Cover: polycarbonate
Color
Temperature		 5000K Power Consumption 340W(at 220V)
Rated Voltage AC100~240V Lightning
Surge
Protection
Pressure
Resistance		 15kV(Common mode)
Light Distribution
Angle		 Wide Light Distribution
Angle(1/2 beam angle)		 72°
Light Distribution
Angle(1/10 beam angle)		 102° Rated Luminous
Flux(at 220V)		 40,800lm
Intrinsic
energy
consumption
efficiency		 120lm/W Color Rendering
Property		 Ra70
Ambient
Temperature		 -20~40℃ Weight 13.5kg
Water and Dust
Resistance		 IP66 Light Source Lifetime 60,000h (lumen maintenance factor70%)
Wind Resistance 60m/s Power Supply Built In

You can calculate the illuminance and number of fixtures required here.

Start the illuminance calculation
