LiDAR Emitter Module
About LiDAR
Automotive Industry Trends
In recent years, many vehicles have been launched with ADAS (Advanced Driver Assistance Systems) as standard equipment. As the future evolves towards more automated driving, sensing around the vehicle is required to be even more accurate.
About LiDAR
LiDAR, which stands for Light Detection and Ranging, is a sensing technology that uses radar light to measure the shape and distance of distant objects.The use of LiDAR technology is expected to be used to constantly monitor the surroundings of automated vehicles and constantly detect vehicles, obstacles and pedestrians in front and behind.
Application Examples
Automotive (Automatic Operation)
Automated vehicles require detection around vehicles, such as pedestrians and cyclists, and long-range detection of oncoming vehicles and obstacles.
-
LiDAR for Surrounding
-
LiDAR for Long Distance
Others
In addition to cars, the system is expected to be used in a variety of other applications where peripheral detection is required.
-
AGV / AMR -
Automatic Door -
Agricultural Machine
Product
LiDAR emitter using VCSEL is compact, enabling our customers to reduce the size of their LiDARs.
Compatible Applications
- Surrounding sensing for automotive
- AGV
- Agricultural machines
Features
- LiDAR emitter using VCSEL is compact, enabling our customers to reduce the size of their LiDARs.

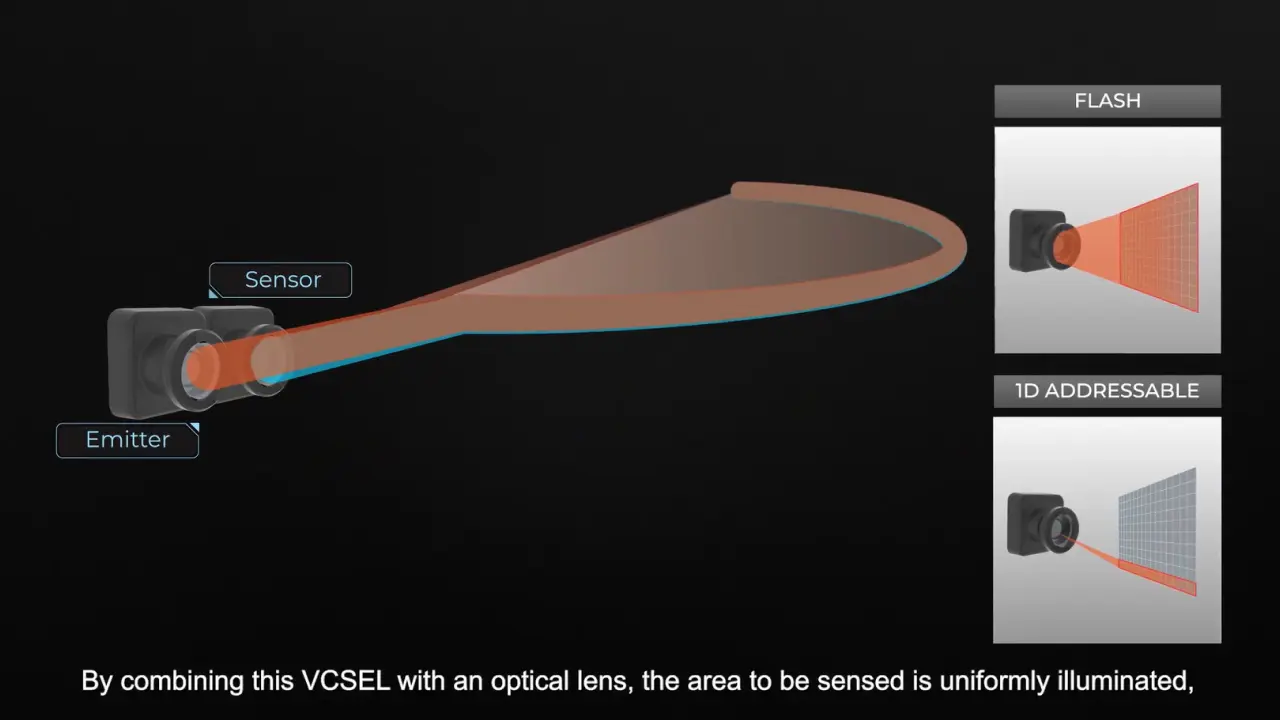

- The use of a 56-channel 1D addressable light source allows for seg mented light illumination.
- True mechanical-less sensing, with no mechanical parts at all.
| Emitter Module | |
|---|---|
|
|
| Target size | L30 x W30 x H30 mm |
| VCSEL Peak Power | 150W/pulse(typ) |
| Number of ch | 56ch |
| FOV | V 30deg, H 120deg* |
| FOI | V 0.5deg, H 120deg |
* Customizable
If you are interested in more information, please contact us. A sales representative will contact you.
